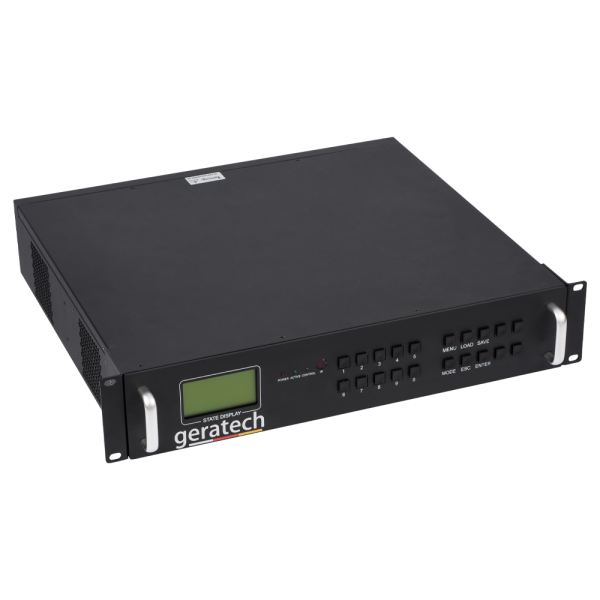

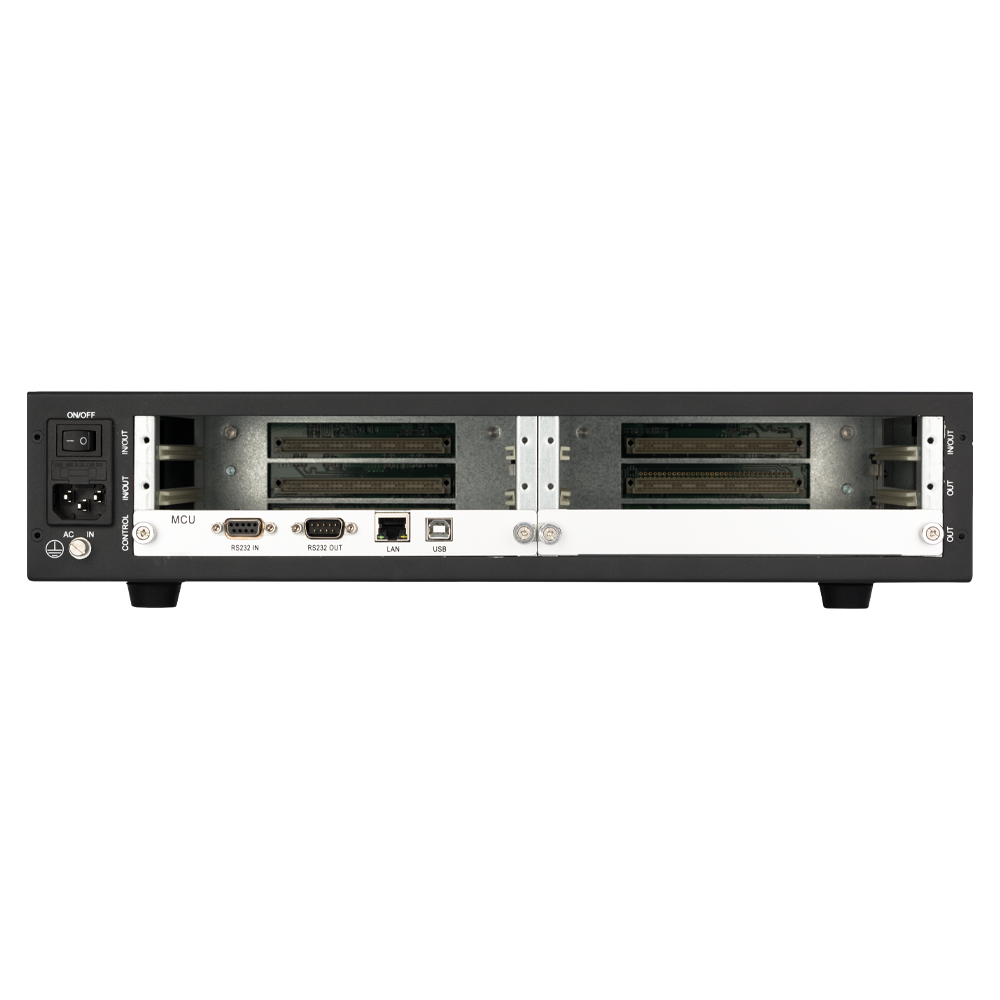

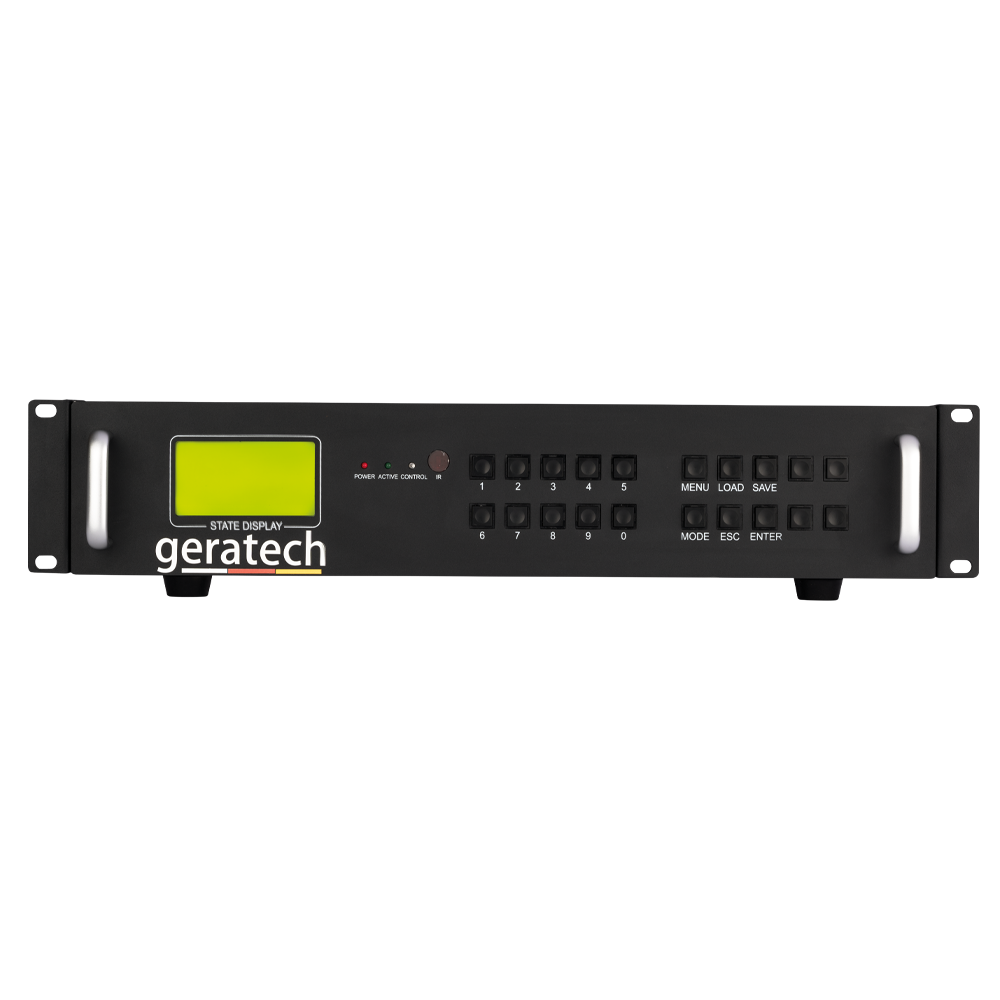

EGE-VWC-2U 2U(8X8) Videowall Controller Chassis
EGE-VWC-3.5U 3.5U(16X16) Videowall Controller Chassis
EGE-VWC-7U 7U(32X32) Videowall Controller Chassis
EGE-VWC-12.5U 12.5 U (72X72) Videowal l Controller Chassis
Input Cards
EGE-VWC-DVI-I
DVI input card DVI-I×4
Resolution up to 1920*1200@60Hz
EGE-VWC-HDMI-I
HDM input card,HDMI Type A port female X4
Resolution up to 1920*1200@60Hz
EGE-VWC-DVI-UXI
4xAV/VGA\YPBPR/SVid/DVI/HDMI Input Module (w/ Adapter)
Resolution up to 1920*1200@60Hz
EGE-VWC-3GHD-SD INPUT
SDI input card,4×SDI SMPTE424M,SMPTE292M and SMPTE259M standard.
Support SD-SDI, HD-SDI, 3G-SDI standard.
EGE-VWC-HDMI-4KIN
4K input card,2×HDMI
1 channel for resolution up to 3840*2160@30hz
EGE-VWC-DVIP2-I
Module for EGE-VWC 2xIP
(Ea. IP Decode 16x1080p)
EGE-VWC-HDMI-4-PVW
HDM input card,HDMI Type A port female X4 (For EGE-VWC-DVI-PREV card)
Resolution up to 1920*1200@60Hz
EGE-VWC-HDBT-I
HDBT Input Module,1080p,4 pcs RJ45 Connector
Resolution up to 1920*1200@60Hz
Output Cards
EGE-VWC-DVI-O
DVI output card DVI-I×4
Resolution up to 1920×1200@60Hz
EGE-VWC-HDMI-O
HDM output card,HDMI Type A port female X4
Resolution up to 1920×1200@60HzHDM
EGE-VWC-HDAUD-O
EGE-VWC-XU Audio Output Card
4x HDMI / 4x 3.5mm Audio Output
EGE-VWC-DVI-PREV
Preview card,1XRJ45 female.
The card will occupy an output slot.
- Uses Appproject easy and powerfull software interface
- Provides scene saving. Just recall the scene don’t need to creat windows everytime again
- Put in order scenes and let them play row by row owing to scene cycle function
- Manage up to 4 videowalls
- Custom Resolution Editor
- Universal DVI Input: (HDMI/DVI/CV/YC/RGB/YPbPr)
- HDBaseT Input
- HDMI Input
- IP Input
- SDI Input: SD-SDI/HD-SDI/3G-SDI
- HDMI Outputs
- DVI-I Outputs: (HDMI/DVI/RGB/YPbPr)
- Control via RS-232, IP
- Rack Mountable Size
- Modularity provides flexible Input/Output
- High Resolution Inputs/Outputs: PC to 1920×1080 , HDTV to 1080p
- Compatible with HDMI input & output
- Video signal parameter adjustments
