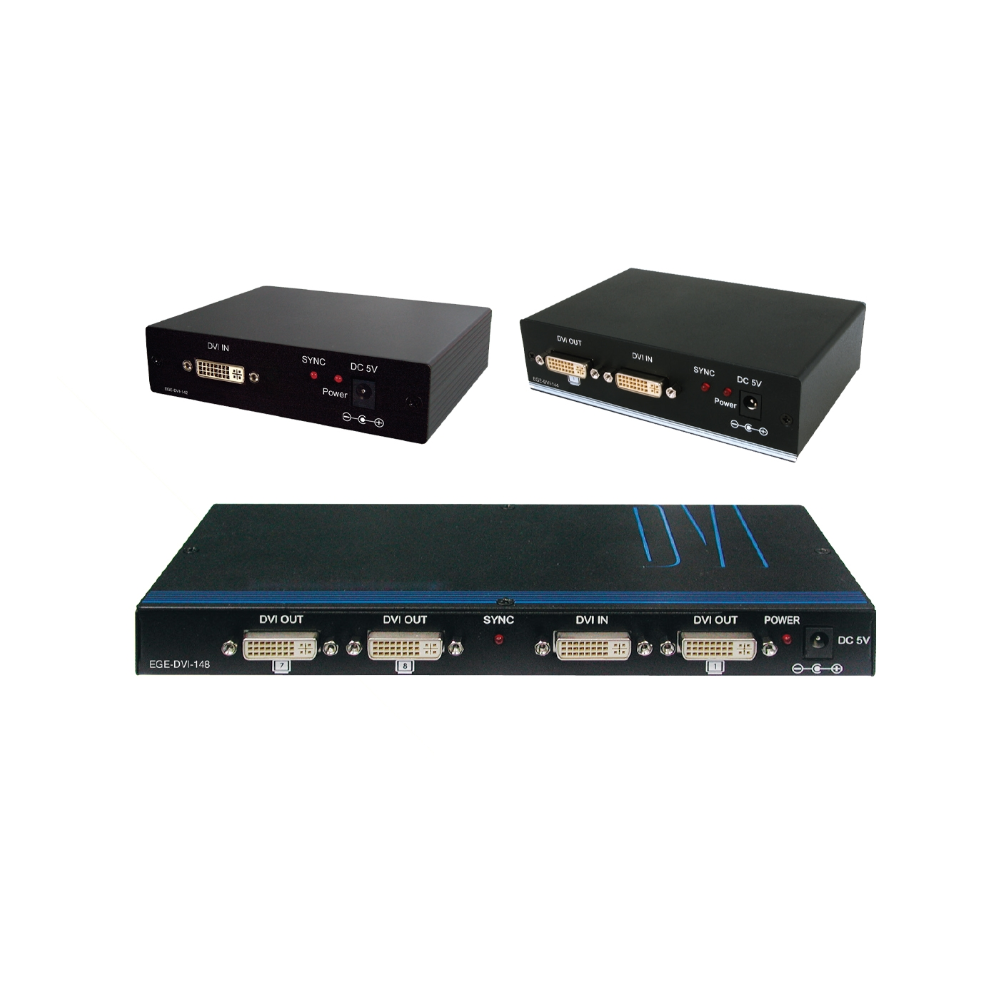

The DVI Splitter series are high performance, HDCP compliant DVI distribution amplifiers.

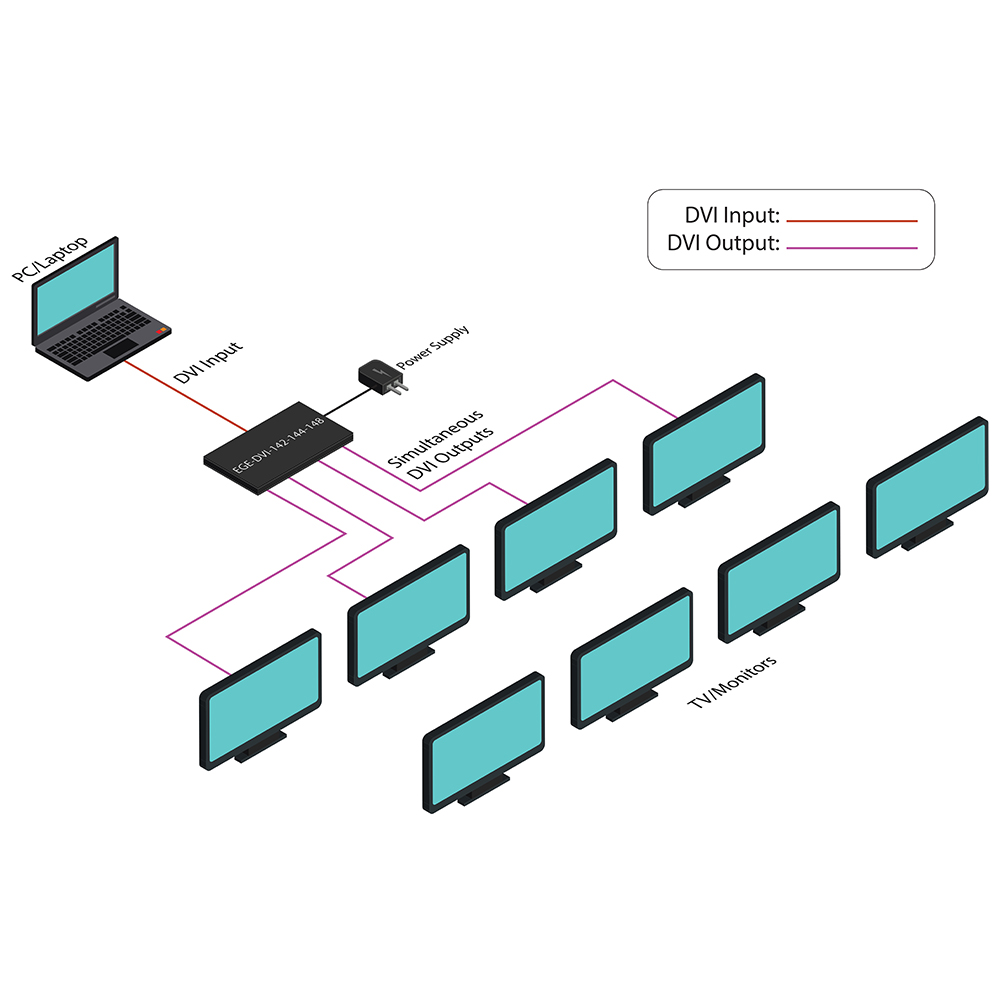

It allows one DVI signal source to be split to two, four or eight identical buffered outputs
for connecting to up to eight DVI displays simultaneously. These models can be used to
transfer HDMI signal by using HDMI to DVI adaptor or cable. Each of the buffered outputs
can be run up to 15 meters and can be cascaded
- Compatible with DVI 1.0
- Compatible with HDMI signal (with adaptor cable)
- Supports a wide range of PC and HDTV resolutions from VGA to WUXGA and 480p to 1080p
- Can be cascaded (maximum 3 layers)
- The device will read and record the EDID of output 1 and then send it to the source device
Inputs
Outputs
PSU:
Dimensions
- 240mm [W] x 103mm [D] x 29mm [H]
Net Weight
• 1×1 by 2 / 1 by 4 / 1 by 8 DVI Splitter
• 1×5 V/2.6 A DC Power Adaptor
• Operation Manual
