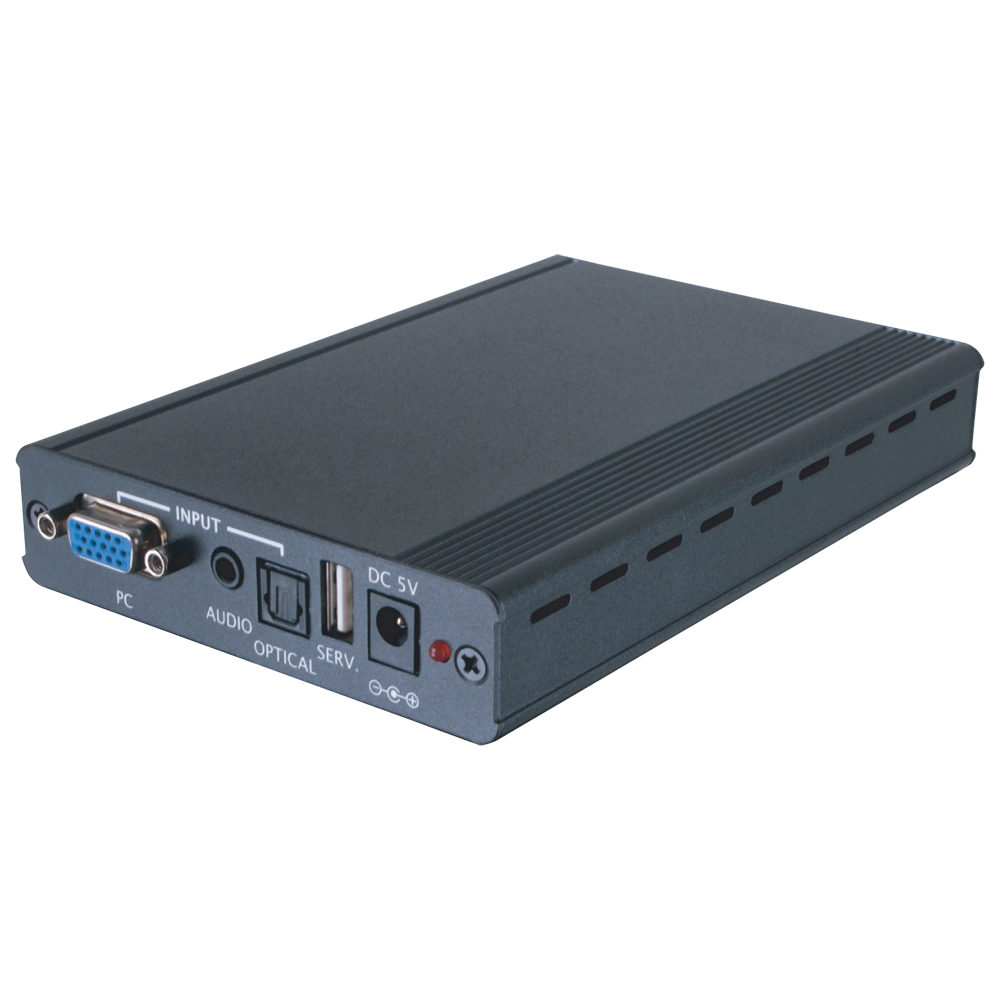

This Scaler Box is designed to upscale analog video signal from PC/HD input source
to digital HDMI output of wide-range HDTV and PC resolutions, up to 1080p/WUXGA.

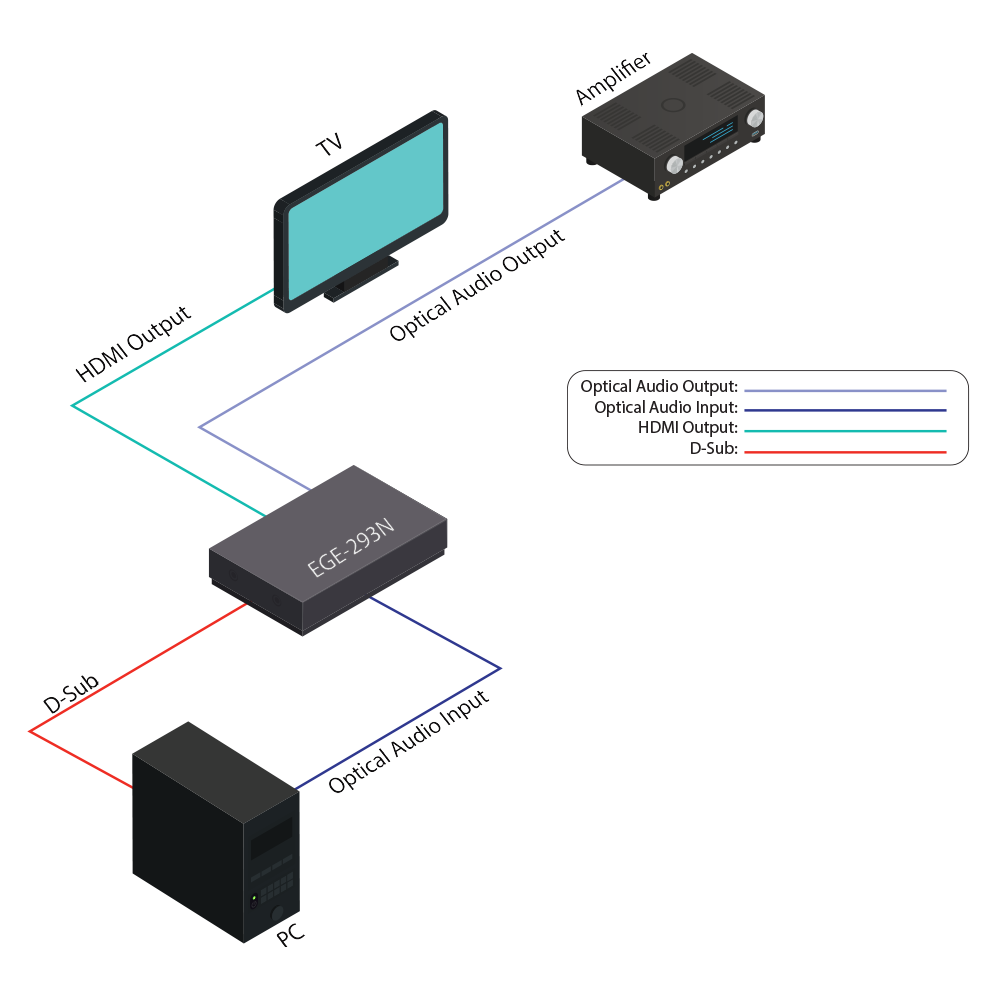

Besides video upscaling, the scaler box also converts input audio signal from Optical or L/
R to both digital and analog formats, then output to HDMI combining with the video, Optical
and phone jack (L/R audio) simultaneously. This unit has a comprehensive OSD menu that
allows user to select a variety of output resolutions and adjust for best picture quality.
- Compatible with HDMI, HDCP and DVI compliant
- Supports a wide range of PC resolutions from VGA to WUXGA (RB) and HD resolutions from 480i to 1080p
- Automatically detects the display settings of the connected display and outputs the correct resolution and refresh rate when the NATIVE output option is selected
- Supports adjustment of contrast, brightness, hue, saturation, sharpness, RGB (color tone) level and aspect ratio size of the video output
- Supports OSD selectable stereo analog and digital audio inputs and simultaneous stereo analog and digital audio outputs to HDMI, Optical digital audio and analog mini-jack connections

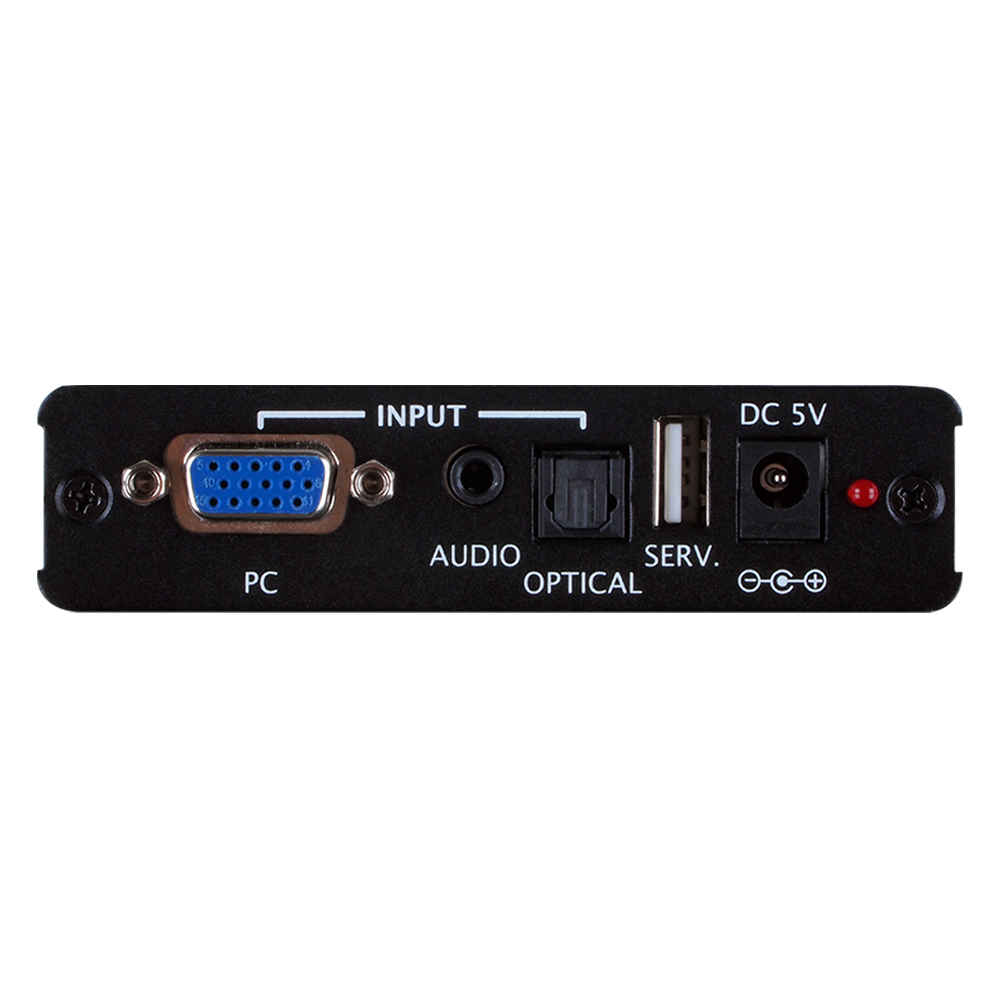

Inputs
- 1x 15-pin D-sub [1x PC/HD RGBHV / YPbPr Component]
- 1x 3.5mm Stereo Mini-jack [1x Stereo(L/R)]
- 1x TOSLINK [1x OPTICAL 2 Channel LPCM]
- 1x USB Type A [1x SERVICE Propriety Data]

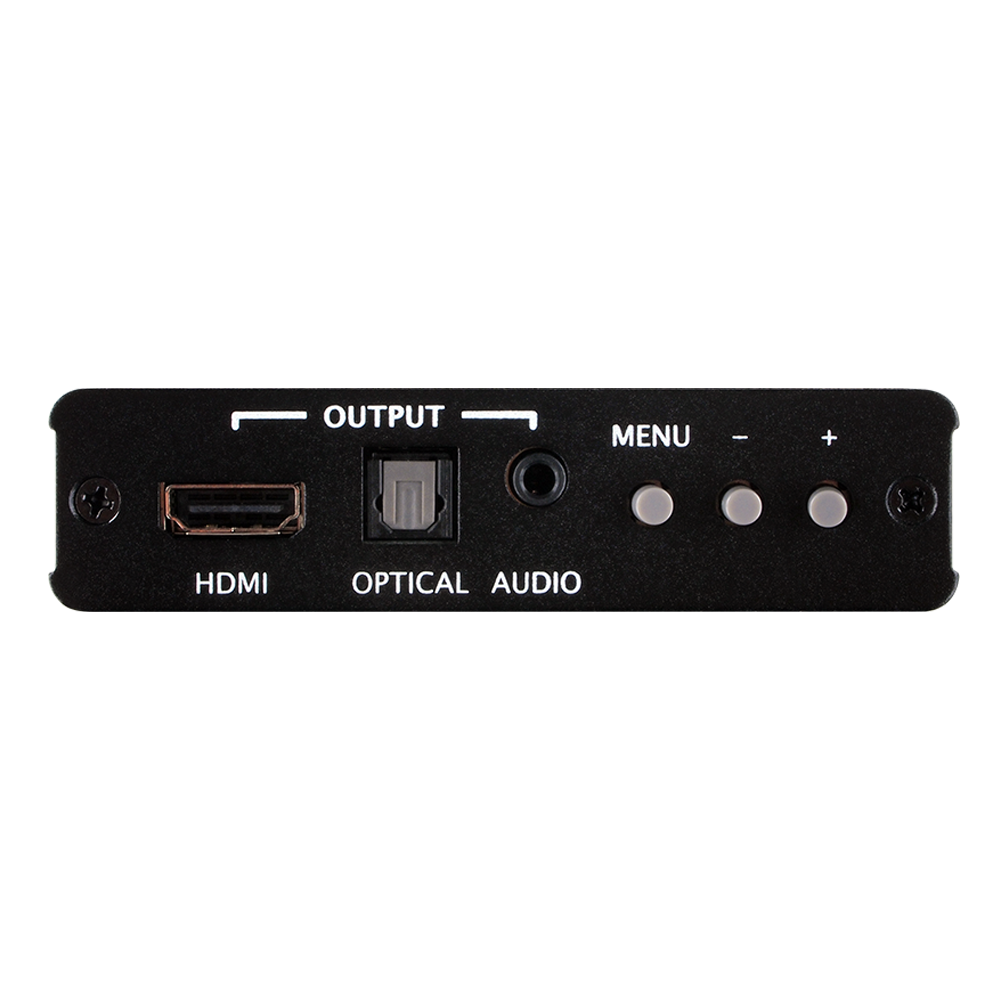

Outputs
- 1x HDMI [1x Uncompressed AV and Data]
- 1x 3.5mm Stereo Mini-jack [1x Stereo(L/R)]
PSU:
Dimensions
- 102mm [W] x 157mm [D] x 25mm [H]
Net Weight
• 1 x PC to HD Scaler
• 1 x D-Sub to D-Sub cable
• 1 x 3.5mm to L/R cable
• 1 x 5 V/2.6 A DC Power Adaptor
• Operation Manual
