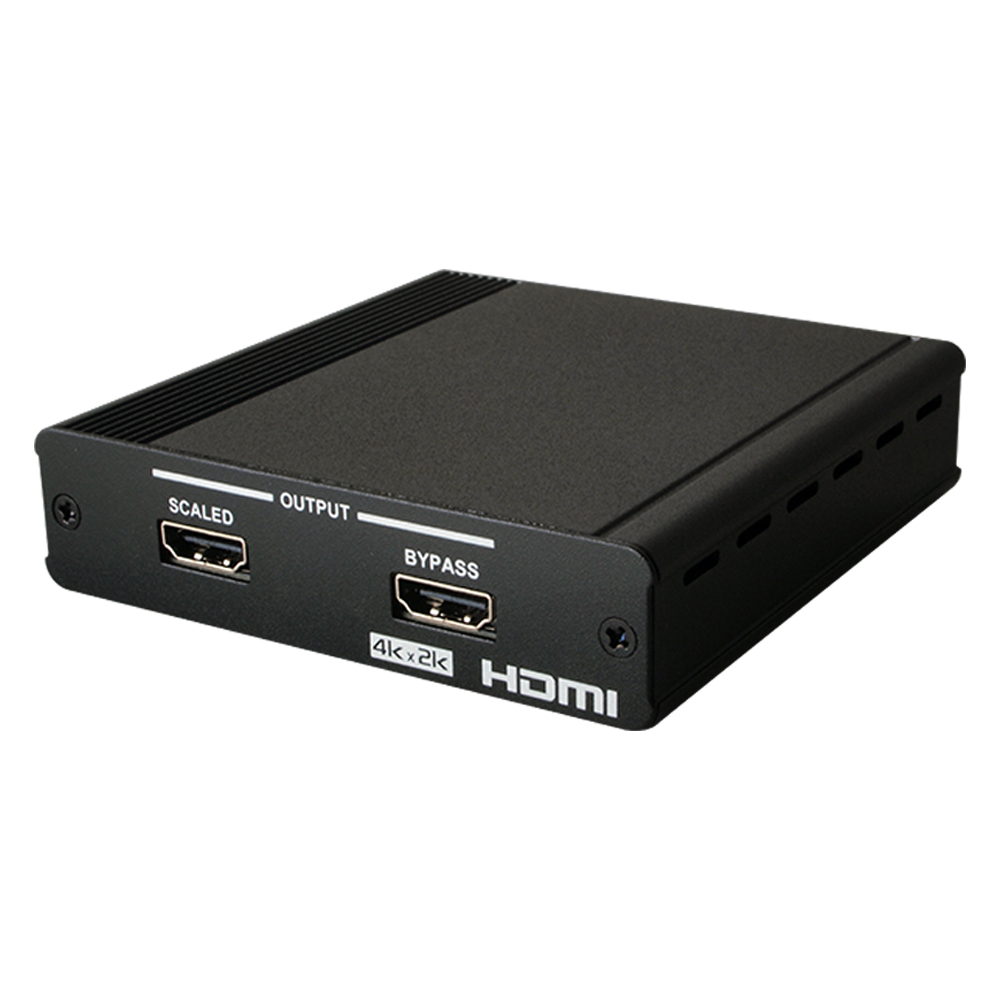

The HDMI 4K2K Scaler is designed to upscale 1080p@24 signal into 4K2K or downscale
4K2K signal into 1080p@24. With friendly and simple design which allows user with direct
viewing on input resolution and switching output signal format up to 2 simultaneous HDMI.
The HDMI 4K2K Scaler is your best media between HD and Ultra HD signal.
- Supports HDMI signal downscaling from 4K2K to 1080p or upscaling from 1080p to4K2K
- Supports HD resolutions of 1080p@24/25/30 Hz
- Supports 4K2K resolutions of 4096×2160p@24 Hz and 3840×2160p@24/25/30 Hz
- Simultaneous HDMI output
- Supports HDMI bypass signal

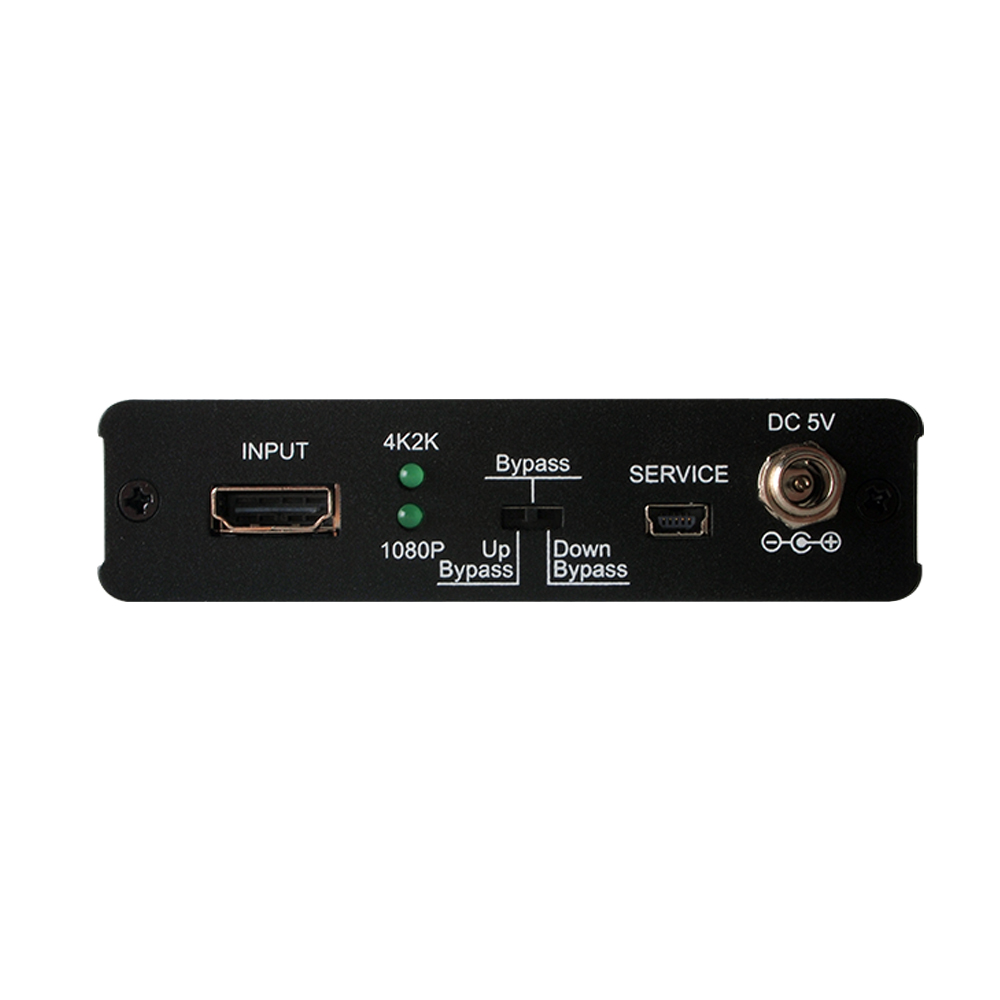

Inputs
- 1x HDMI [1x Uncompressed AV and Data]
- 1x USB Mini-B [1x SERVICE Propriety Data]

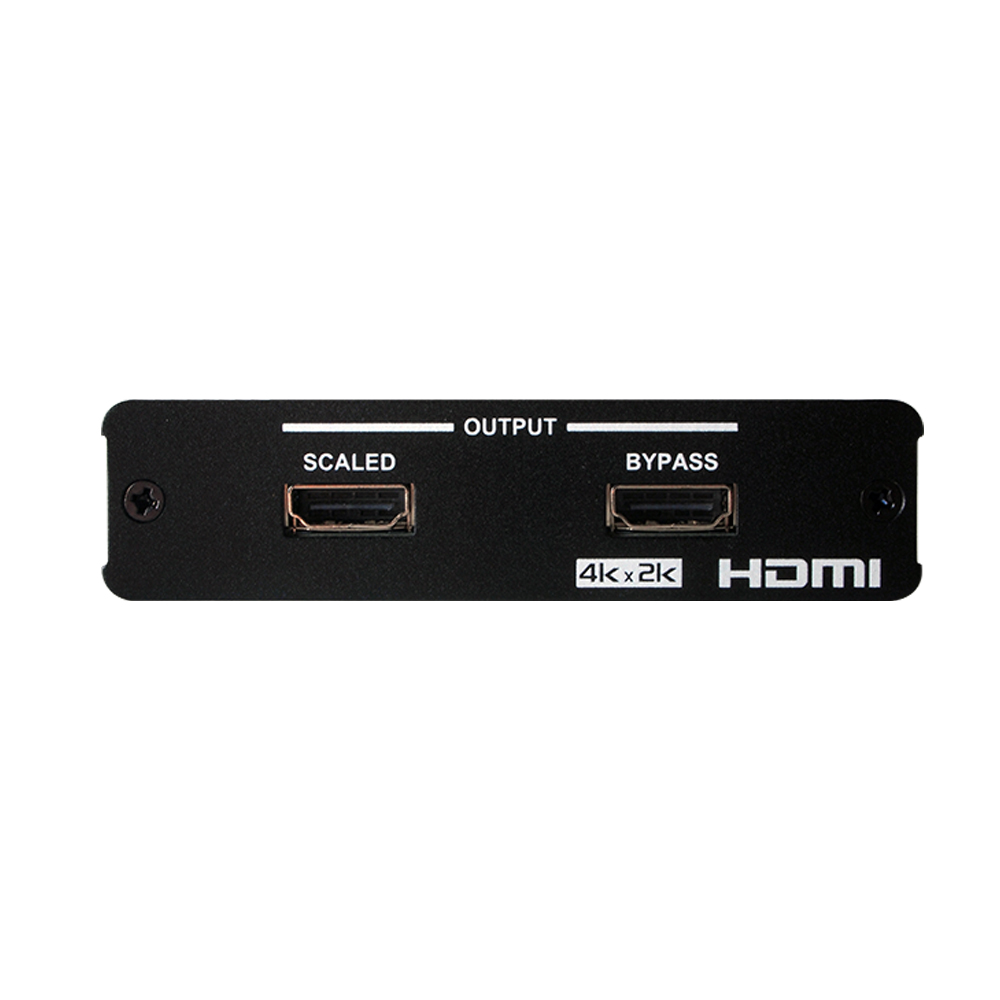

Outputs
- 2x HDMI [2x Uncompressed AV and Data]
PSU:
Dimensions
- 102mm [W] x 108mm [D] x 25mm [H]
Net Weight
• 1 x HDMI 4K2K Scaler
• 1 x 5V/2.6A DC Power Supply
• 1 x User Manual
