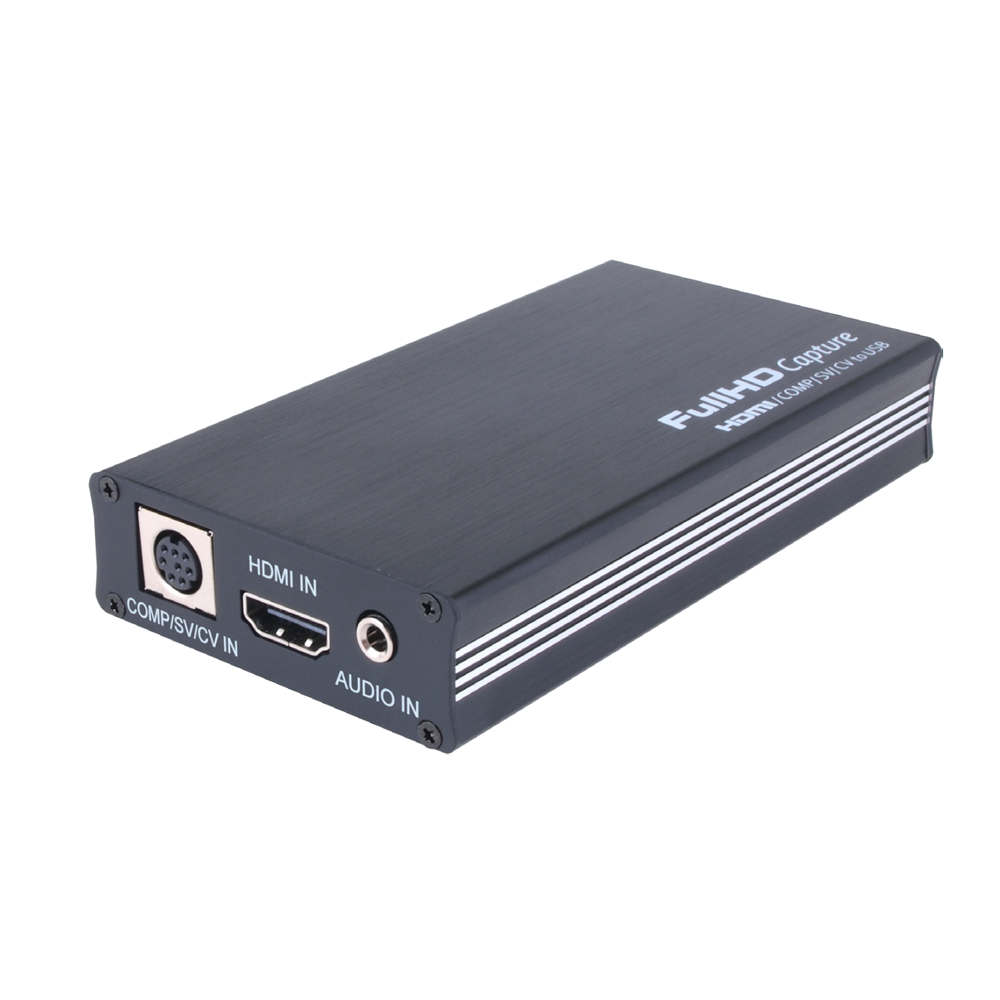

EGE-CAP-HDCMP-USB is High Definition capture box supports HDMI
1080p video/component/SV/CVinput and record to H.264 video format. Its
low power consumption and superior video processing capabilities make it
ideal for integration into high-end portable and desk top PC products.
- FullHD capture HDMI/COMP/SV/CV to USB
- H.264/MPEG4-AVC High Definition encoder
- Video input supports: 1920x1080i/p, 1280x720p, 576i/p, 720x480i/pSupp
- orts MPEG-4 Advanced Audio Coding (AAC)
- 48 KHz audio sampling frequencies
- It use USB bus power for low power consumption

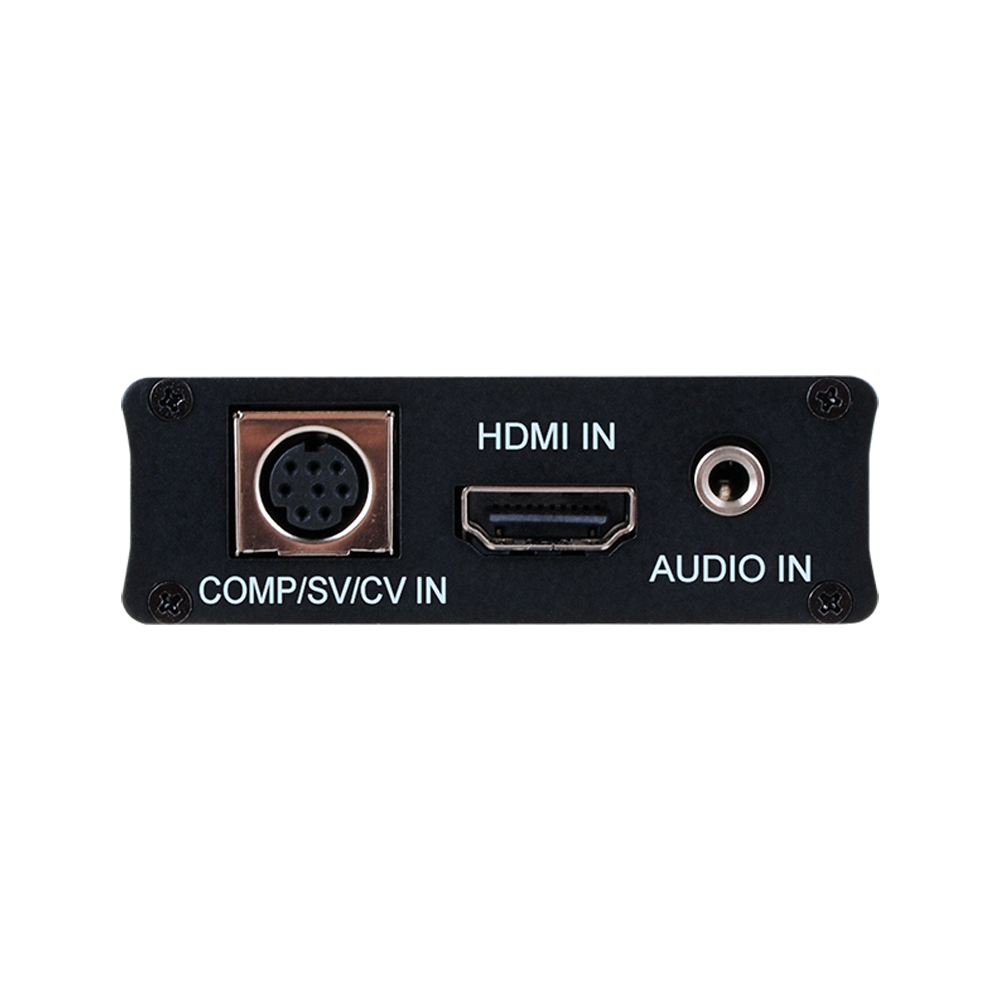

Inputs
- 1x HDMI [1x Uncompressed AV and Data]
- 1x 8-pin DIN [1x COMP/SV/CV YCbCr]
- 1x 3.5mm Stereo Mini-jack [1x Stereo(L/R)]

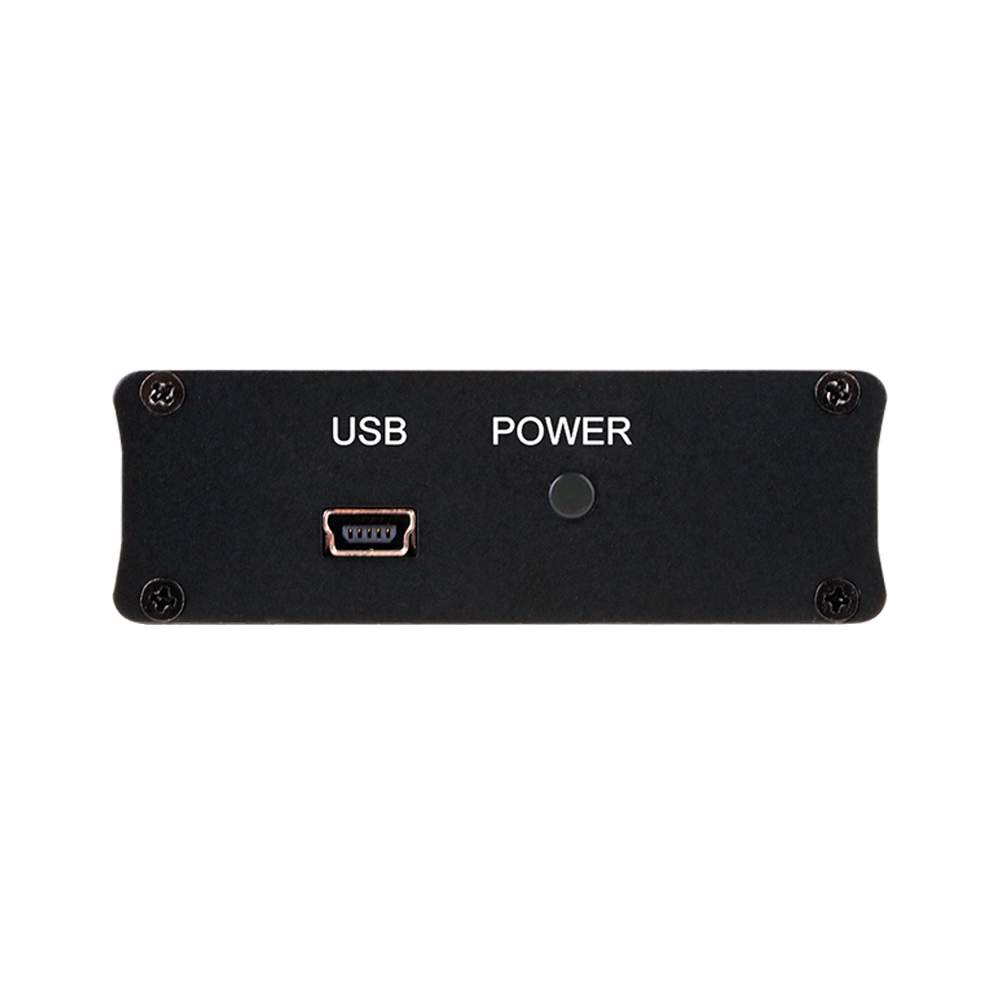

Outputs
- 1x USB Mini-B [1x Propriety Data / USB Power]
PSU:
Dimensions
- 121mm [W] x 65mm [D] x 21mm [H]
Net Weight
HDMI/COMP/SV/CV to USB Cature Box
• Driver CD Disc
• COMP/SV/CV converter cable
• Operation Manual
