This Control System Center is ideal for a user who has a wide variety of devices that need
to be controlled. It comes with eight external trigger connections which directly activate 8 (of
16 total) user defined macro events stored within the unit. All 16 macros are available to be
activated via the WebGUI, or by Telnet. Those user defined macros can send commands

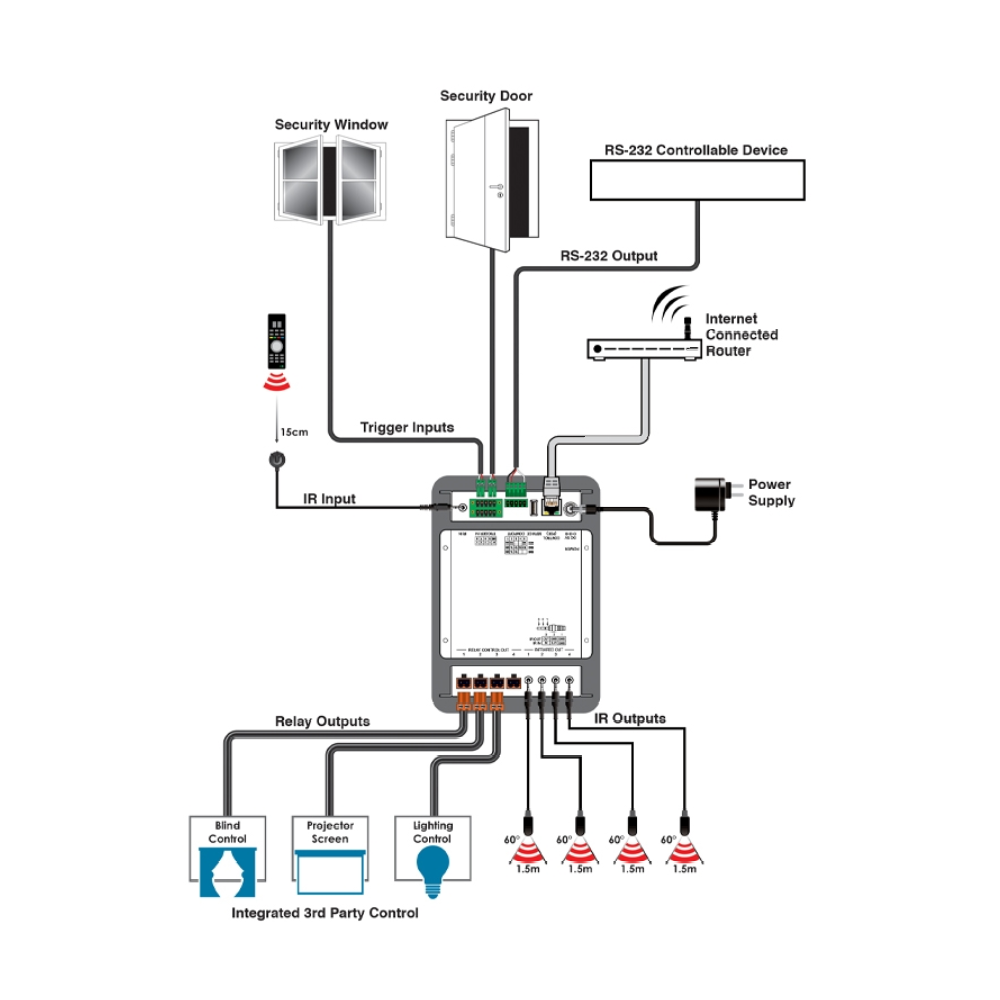

to remote devices via Ethernet, IR (×4), relay trigger (×4), or RS-232/422/485 (×1) allowing
for the control of a large array of devices at the push of a button.
An integrated IR code learning function is also available, allowing the user to store and
retransmit the IR codes sent by nearly any standard IR remote. Comprehensive user
control interfaces are available including WebGUI, Telnet and console (RS-232 in). Last but
not least, this unit supports Power over Ethernet (PoE) allowing it to be powered directly
from a standard PoE network switch, without the need for an external power adapter,
allowing for incredible installation flexibility.
- 8 trigger inputs linked directly to 8 user macros allowing for instant control activation
- 4 relay trigger outputs to control devices such as projector screens, lighting, etc.
- 4 IR outputs to control devices such as TVs, media players, etc.
- Integrated IR code learning functionality
- Multiple user control interfaces including WebGUI, Telnet and RS-232
- Simple configuration of macros, triggers and relay settings via the WebGUI
- PoE (Power over Ethernet) support
- Firmware can easily be updated in the field via USB

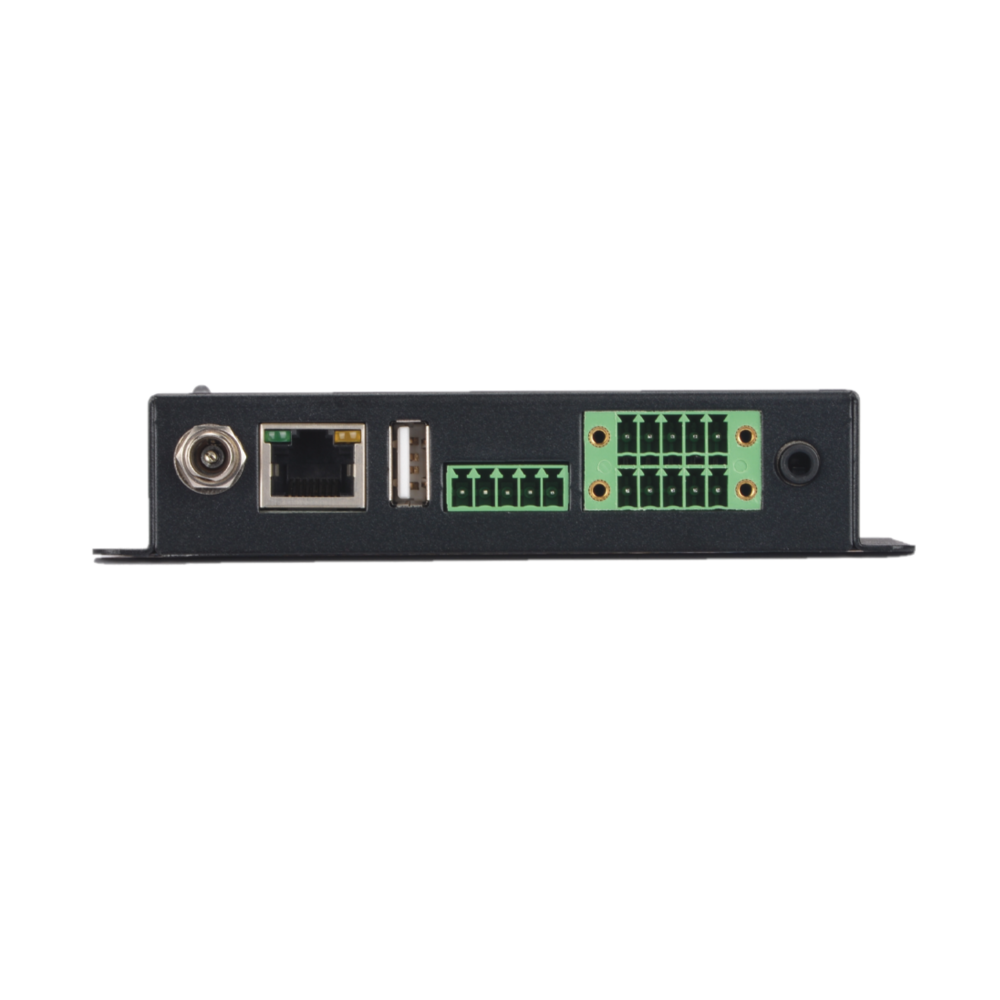

Inputs
- 1x RJ45 [1x IP Control]
- 1x 3.5mm Stereo Mini-jack [1x Infrared Receiver]
- 8x 1-Pin Terminal Block [8x Trigger]
- 1x USB Type A [1x SERVICE Propriety Data]
Outputs

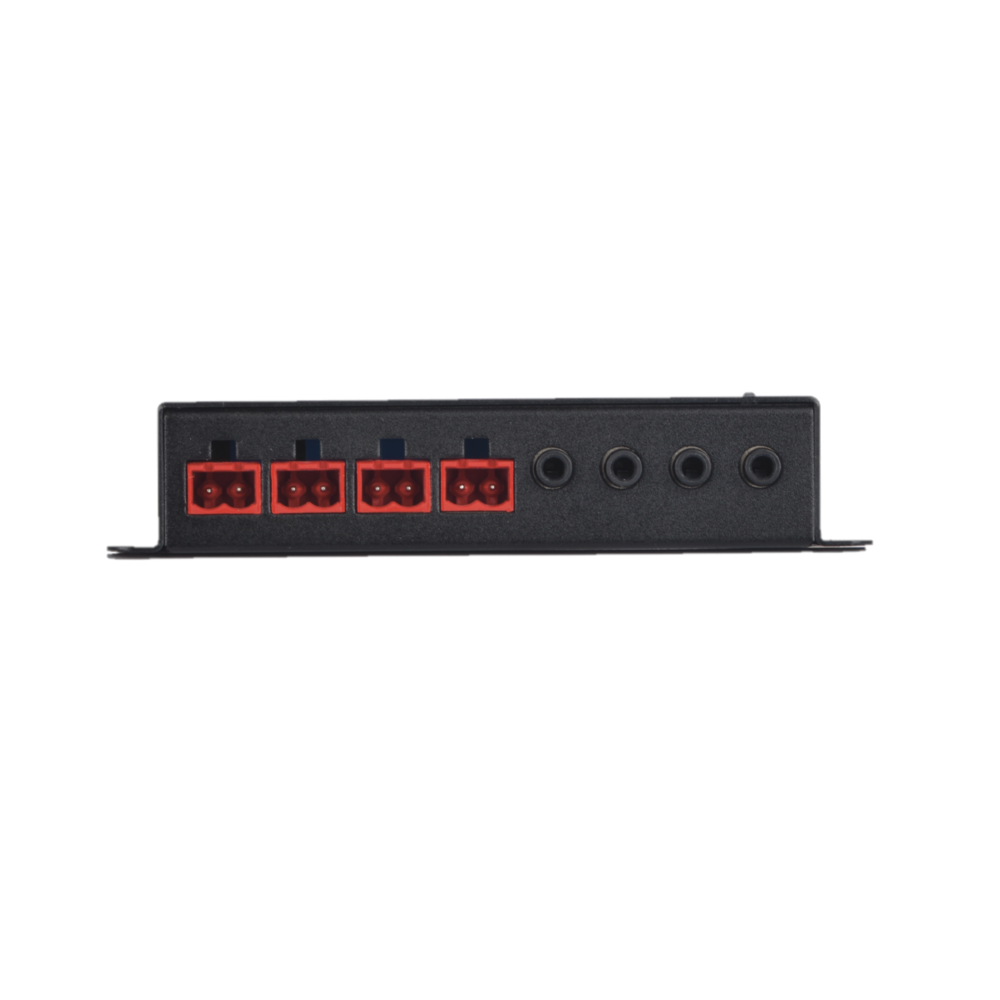

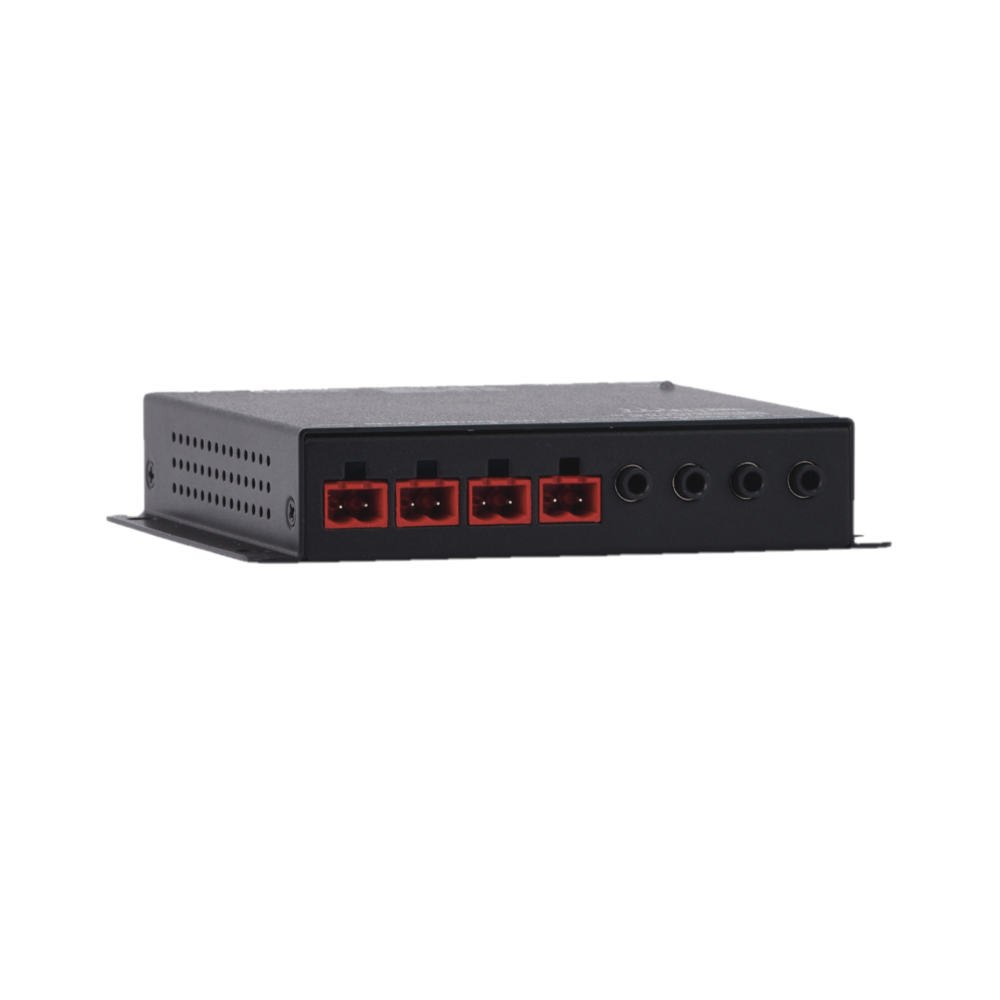

- 4x 2-Pin Power Socket [4x Relay]
- 4x 3.5mm Stereo Mini-jack [4x Infrared Emitter]
- 1x 5-Pin Terminal Block [1x RS-232/422/485/DMX512]
PSU:
Dimensions
- 128mm [W] x 118mm [D] x 25mm [H]
Net Weight
• 1×Control System Center
• 1×IR Learner/Extender Cable
• 4×IR Blaster Cable
• 7×Terminal Block Connectors
• 1×5V/2.6A Power Adaptor
• 1×Operation Manual
