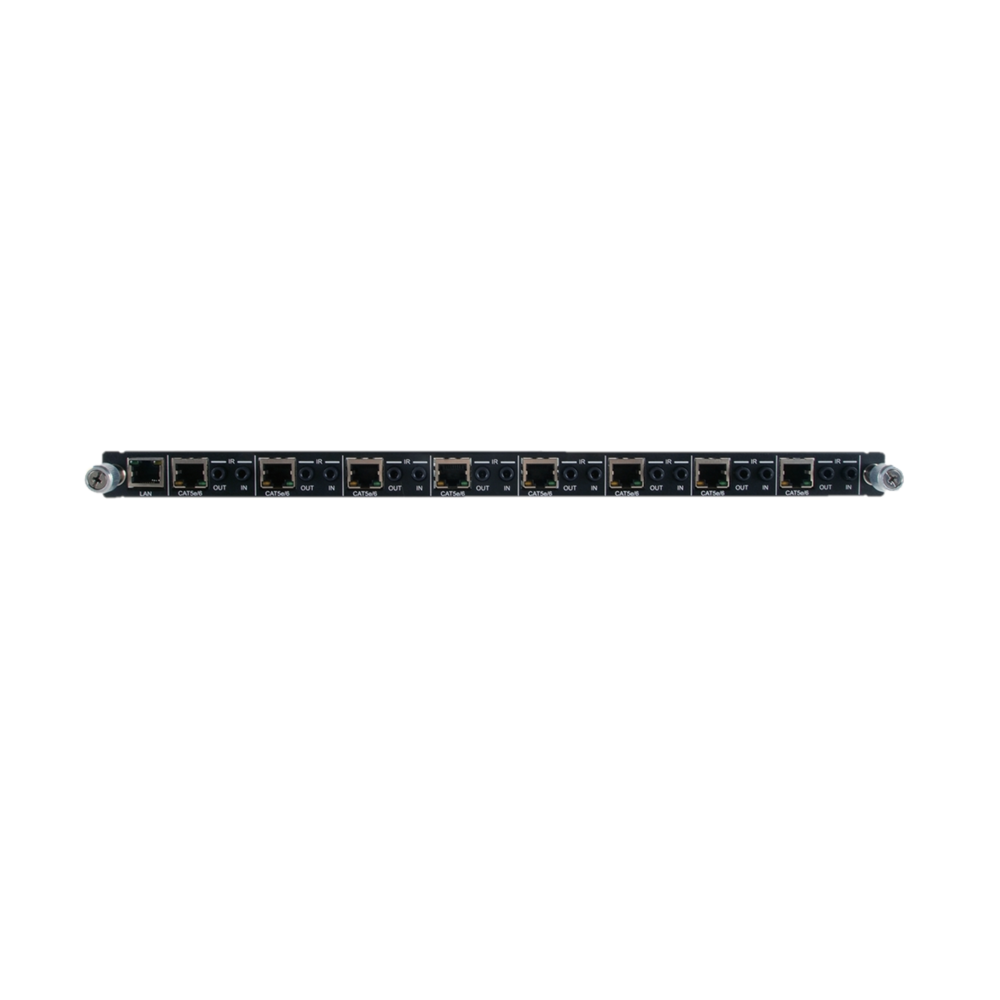

EGE-C5HDB-UHD-8IN HDBaseT Input Card for Modu…

HDBaseT Input Card for Modular Matrix
4K2K@30Hz

Categories: Matrix, Modular Matrix, PRO-AV-Products Tags: Geratech EGE-C5HDB-UHD-8IN, Geratech EGE-C5HDB-UHD-8IN HDBaseT Input Card for Modular Matrix, Geratech HDBaseT Input Card for Modular Matrix

Video Bandwidth: 300MHz/10.2Gbps
HDBaseT technology: PoC, IR/RS-232, and Ethernet functions
Output Ports: 8 CAT5e/6/7, 8 IR Extender, 8 IR Blaster, and 1 LAN
Ethernet Speed: 100Mbps
Supported PC Resolutions: VGA to WUXGA
Supported HD Resolutions: 480i to 1080p and 4K2K@30Hz
IR Frequency: 30~50Hz
Supported Audio transmission: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
Supported Audio sampling rate: 32~192kHz

Inputs

8x RJ45 [8x HDMI & Propriety Data]
1x RJ45 [1x LAN Serving]

Video Bandwidth: 300MHz/10.2Gbps
HDBaseT technology: PoC, IR/RS-232, and Ethernet functions
Output Ports: 8 CAT5e/6/7, 8 IR Extender, 8 IR Blaster, and 1 LAN
Ethernet Speed: 100Mbps
Supported PC Resolutions: VGA to WUXGA
Supported HD Resolutions: 480i to 1080p and 4K2K@30Hz
IR Frequency: 30~50Hz
Supported Audio transmission: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
Supported Audio sampling rate: 32~192kHz

Inputs

8x RJ45 [8x HDMI & Propriety Data]
1x RJ45 [1x LAN Serving]
