1- Fix the antennas to the main unit

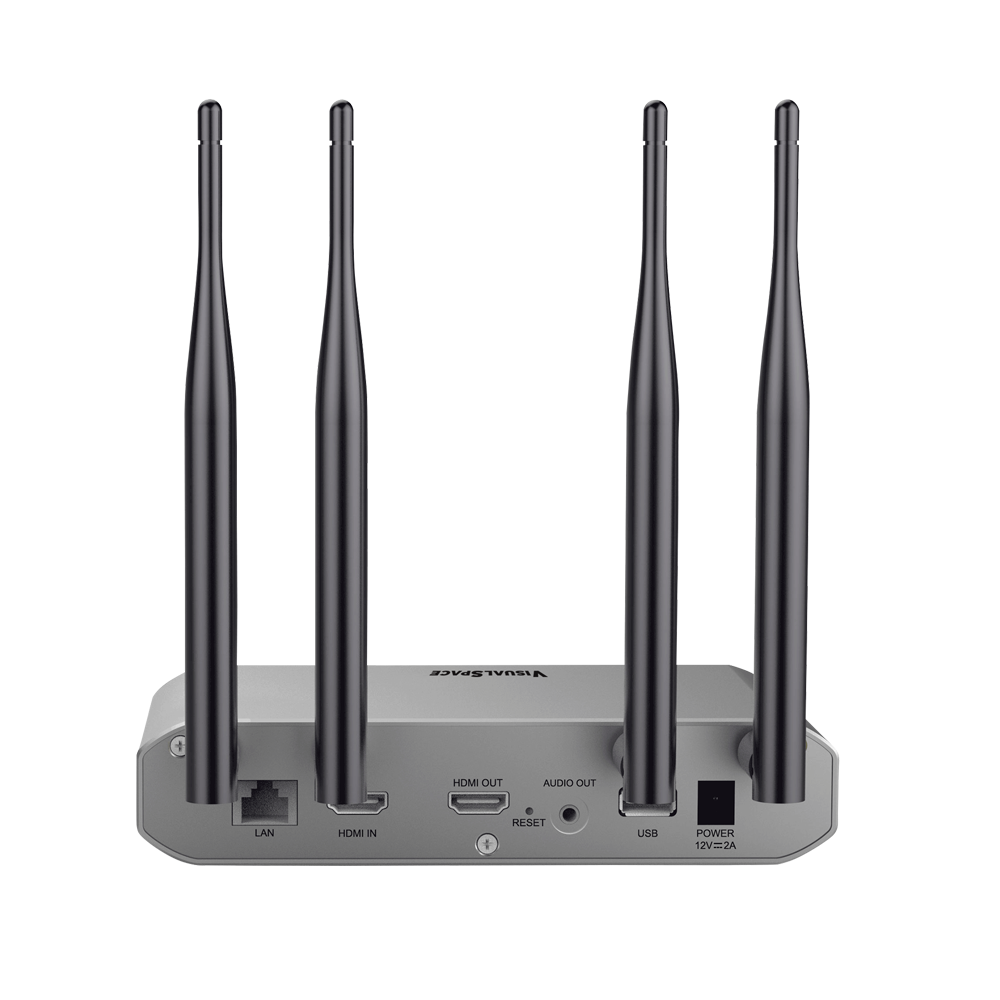

2- Connect HDMI Out to the Display
3- Connect LAN connection the unit will get automatic IP
4- Connect Power Supply to the main unit
5- Pair USB Dongle connecting USB port of the main unit
6- Connect USB Dongle to PC or MAC and run the file in the dongle
Video input and output supports HDMI 2.0 4K@60Hz
BYOM-Bring Your Own Meeting and BYOD-Bring Your Own Device

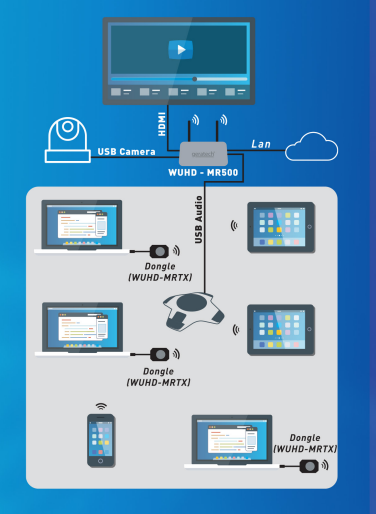

Wireless Conferencing Solution
USB2.0 Camera and Speakerphone Support Touch Screen (touch-back) Support

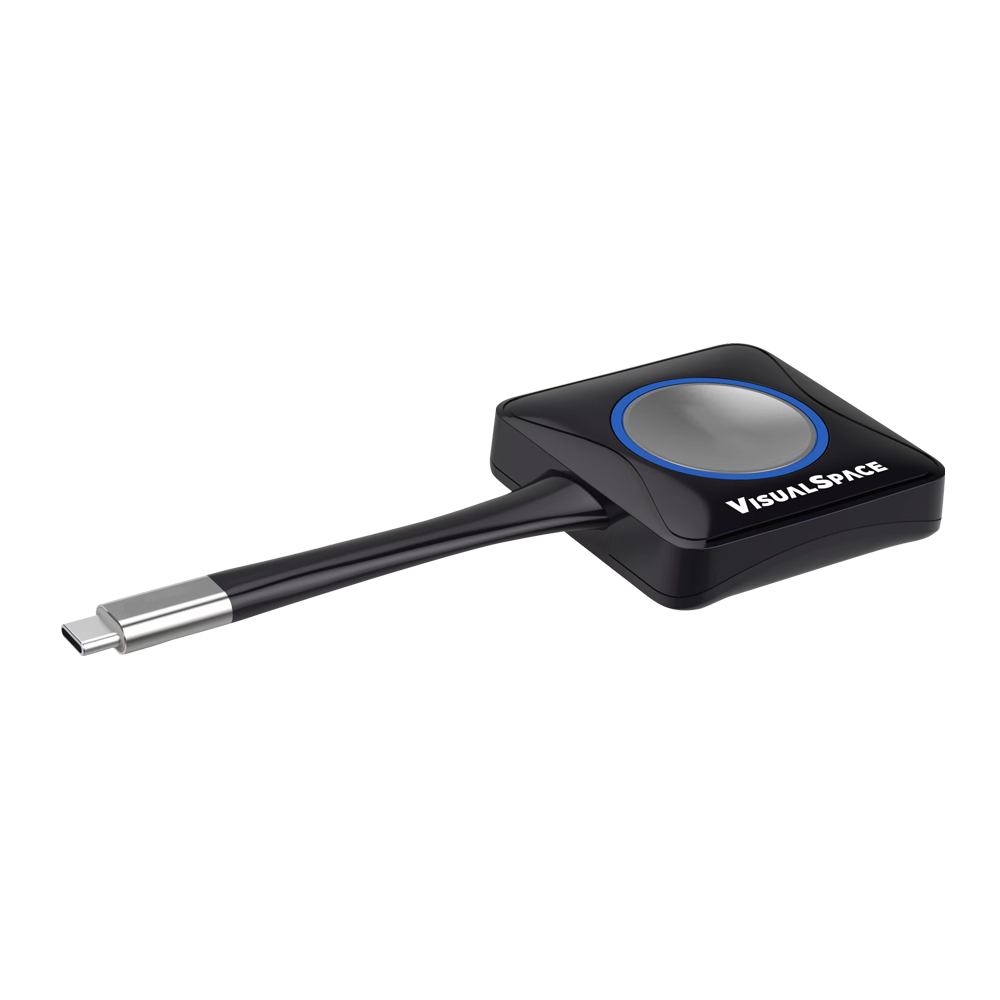

Type-C, HDMI and USB button options
Wireless transmission of a windows PC or Mac to the Base Unit using Dongles
9 USB dongles screen sharing at the same time
IOS and Android Mobile device screen sharing
Low Latency 100ms, 50m transmission distance
Extend display functionality
HDMI&VGA Out Simultaneously
Support 2.4Ghz and 5Ghz Band selection
16 USB Dongle support (max.9 screen sharing at the same time)

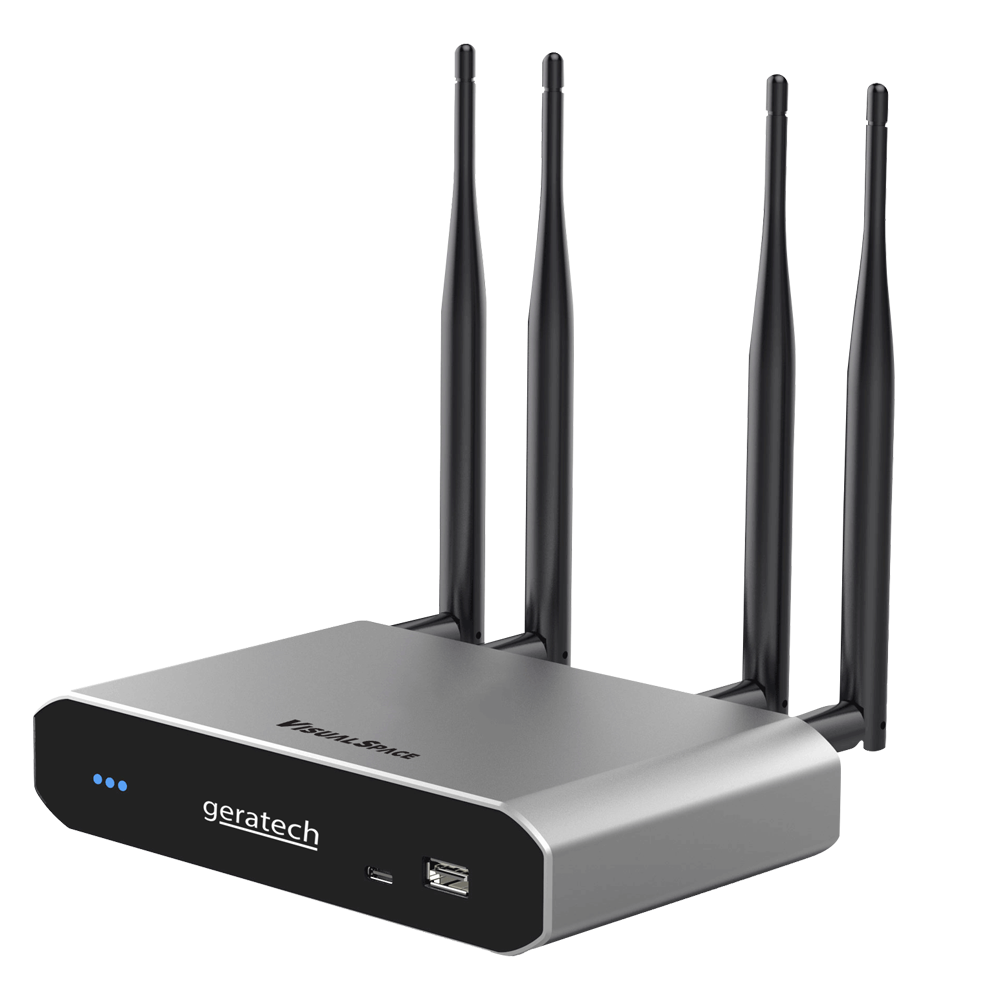

1 x WUHD-MR500
2x WUHD-MRTX
1 x DC12V 1A Power Adapter
1 x Four kinds of plugs are optional
1 x Memory Stick
