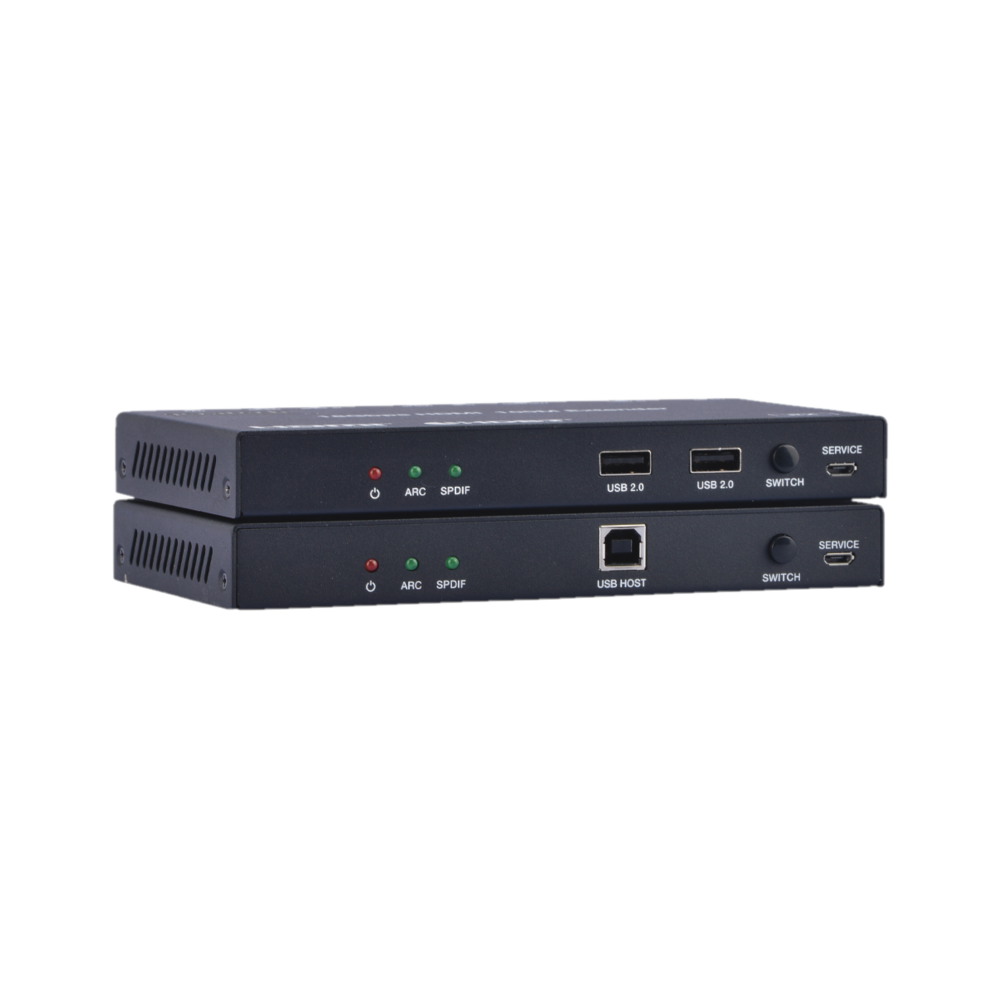

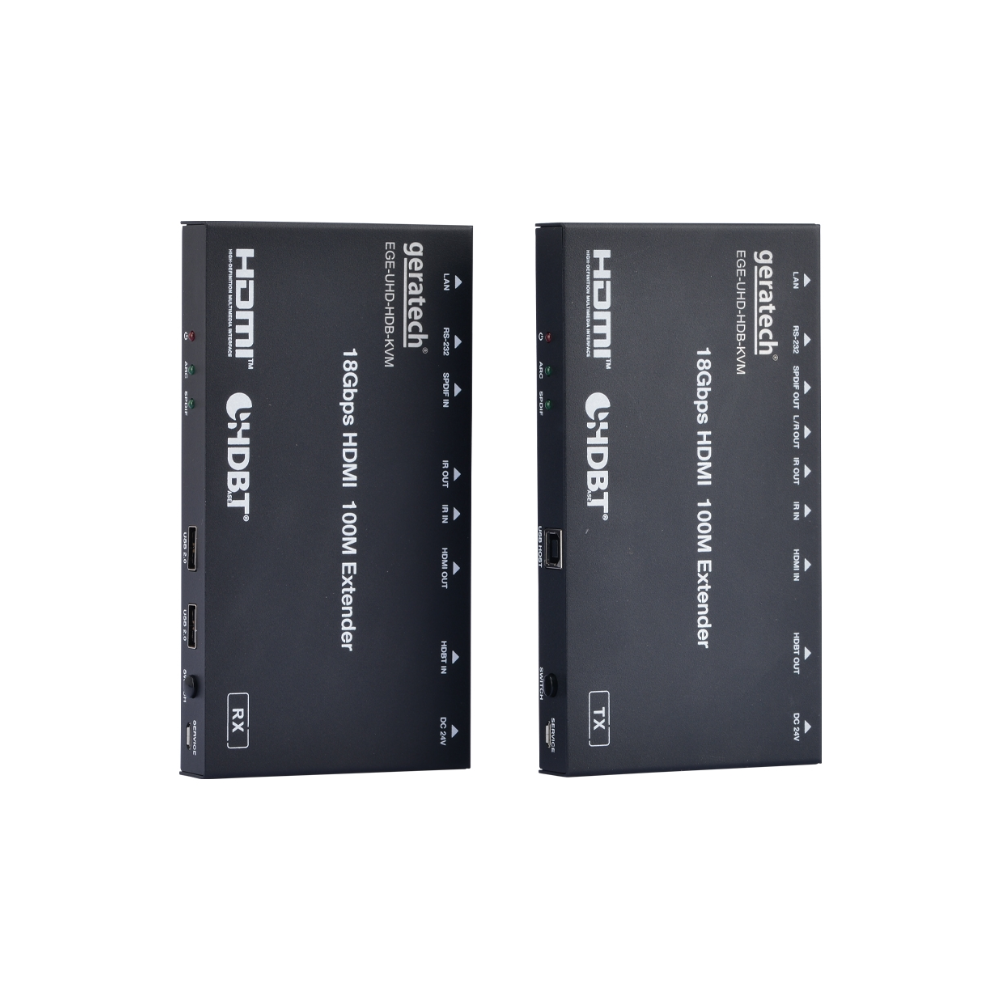

This 18Gbps HDMI Extender can extend high definition video / audio signal,
RS-232, bi-directional IR and internet signal, at the distance of up to 328ft /
100 meters between transmitter and receiver via a single CAT6a/7 cable and
support resolution up to 4K2K@60Hz 4:4:4. The Transmitter supports ARC
function and local audio extract. In addition, the extender is equipped with
bi-directional IR pass-through which allows for source and display control. It
also supports USB KVM and PoC function. The extender offers the most
convenient solution for HDMI extension via a single CAT cable with long
distance capability, and is the perfect solution for any application.
- HDBaseT™ 2.0 over a single CAT5e/6/7 cable up to 330ft/100m distance
- 5-Play™ convergence: HD video & audio, IR/RS-232/LAN/PoC
- Simple plug-and-play for easy connection – no set up/drivers/software required
- Supports High Definition resolutions up to 4K2K@60Hz(4:2:0),4K2K@30H z,1080P@120Hz, and 1080P 3D@60Hz
- Supports up to 7.1 channels of High Definition audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio)
- Supports Bi-directional wideband IR control, Ethernet and external digital audio capabilities
- FSupports Bi-directional 24V PoCThis 18Gbps HDMI Extender can extend high definition video / audio signal,
• 1 x 18Gbps HDMI over HDBaseT Extender (Transmitter)
• 1 x 18Gbps HDMI over HDBaseT Extender (Receiver)
• 1 x IR Blaster cable (1.5 meters)
• 1 x 20~60KHz IR Receiver cable (1.5 meters)
• 4 x Mounting Ear
• 2 x 3-pin Phoenix connector
• 1 x 24V/1A Locking Power adapter
• 1x User Manual
