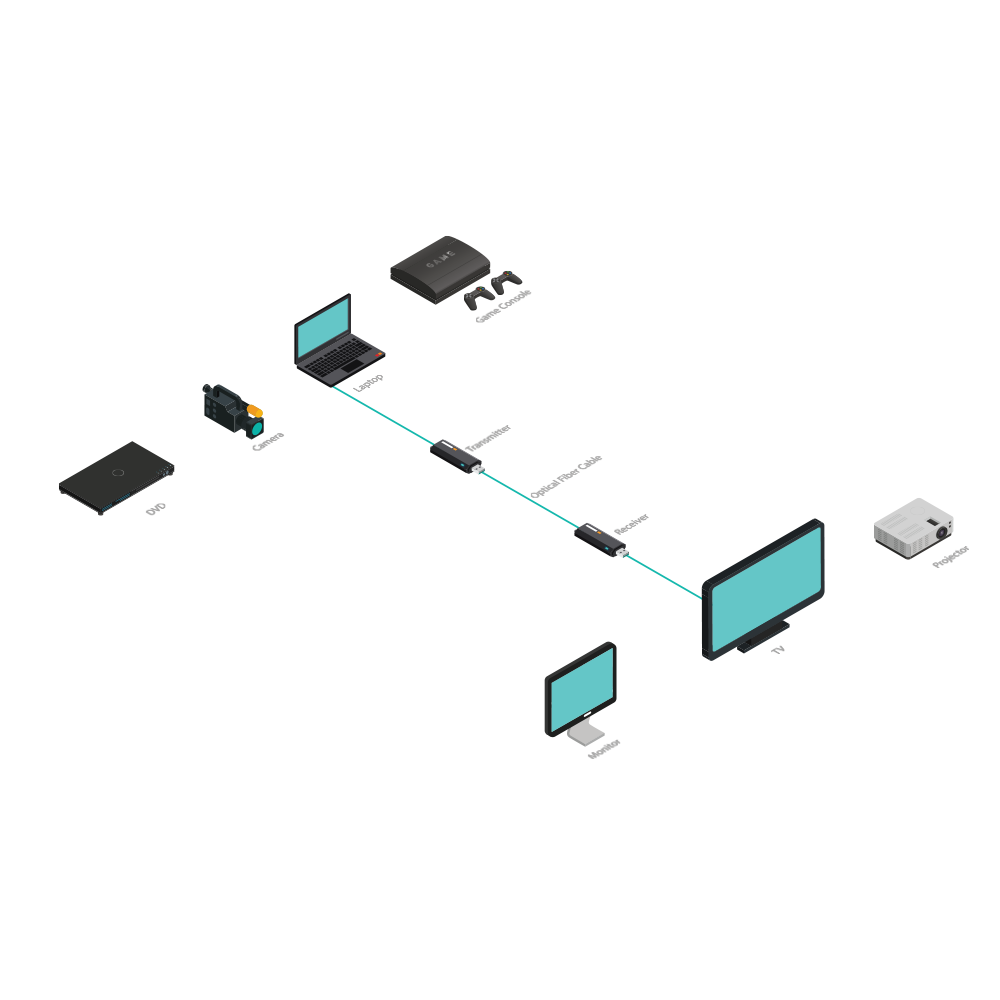

This 4K60 HDMI over Fiber Extender can extend HDMI signal up to 300m/
984ft over an OM4 multimode single optical fiber cable. The resolution is
up to 4K60 4:4:4. It supports HDMI HDP/DDC/CEC/ARC transmission.

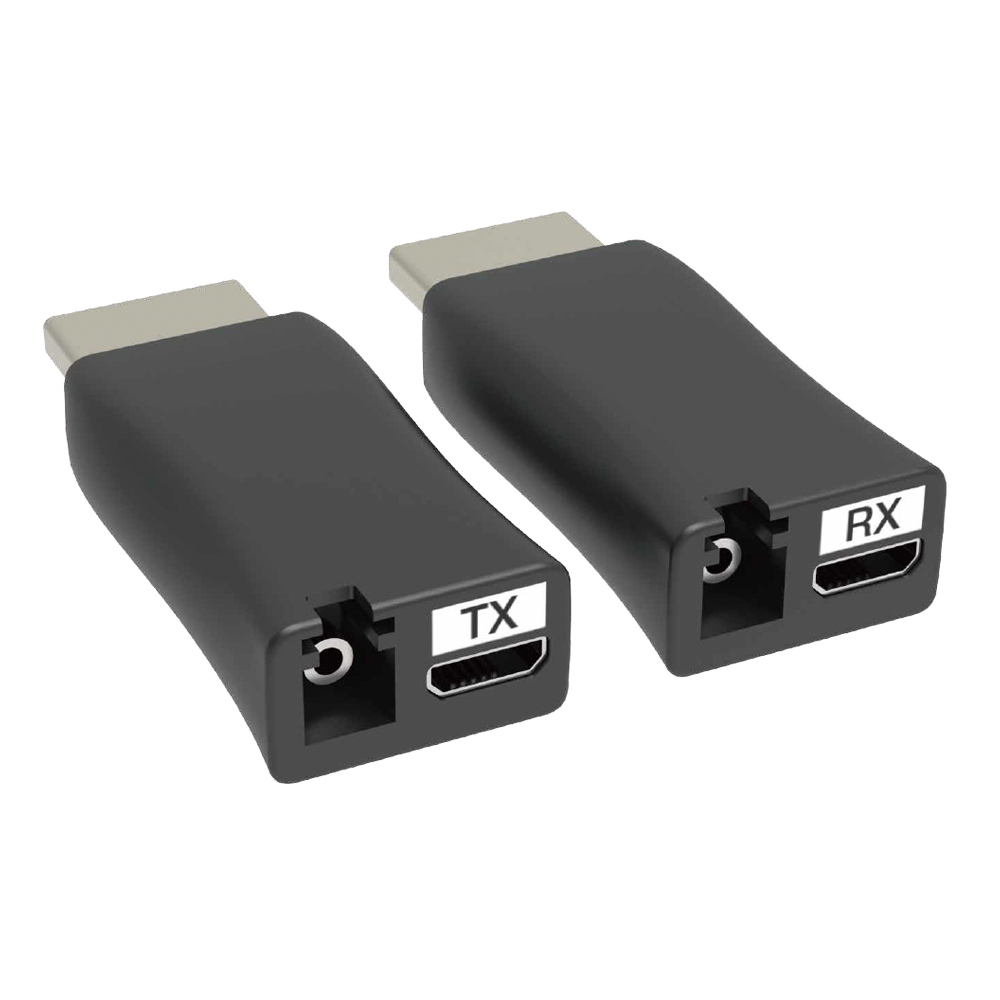

The transmitter features one HDMI input, one LC fiber optical output and
one Micro USB power supply port (transmitter also can be powered by the
connected HDMI source device). The receiver features one HDMI output,
one LC fiber optical input and one Micro USB power supply port.
This product has the advantages of strong anti-interference, high safety
performance, small size and light weight, and has incomparable advantages
in long-distance transmission.
HDCP 2.2 compliant
Support 18Gbps video bandwidth
Support video resolution up to 4K60 4:4:4, as specified in HDMI 2.0b
Signal transmission distance can be extended up to 300m/984ft over
an OM4 multimode single optical fiber cable
Support HDMI HDP/DDC/CEC/ARC transmission
HDMI Audio formats support LPCM, Dolby Digital/Plus/EX, Dolby True
HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD
Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
Fiber module included (Embedded)
Standard single Fiber LC connector
Micro USB power supply
2x USB cables and 2x 15cm HDMI female to male cables included
Compact design for easy and flexible installation
1 × 4K60 HDMI over Fiber Extender (Transmitter)
1 × 4K60 HDMI over Fiber Extender (Receiver)
2 × HDMI Adapter Cable (male to female, 15cm)
2 × USB Cable (USB A to Micro USB, 1m, shielded)
1 × User Manual
