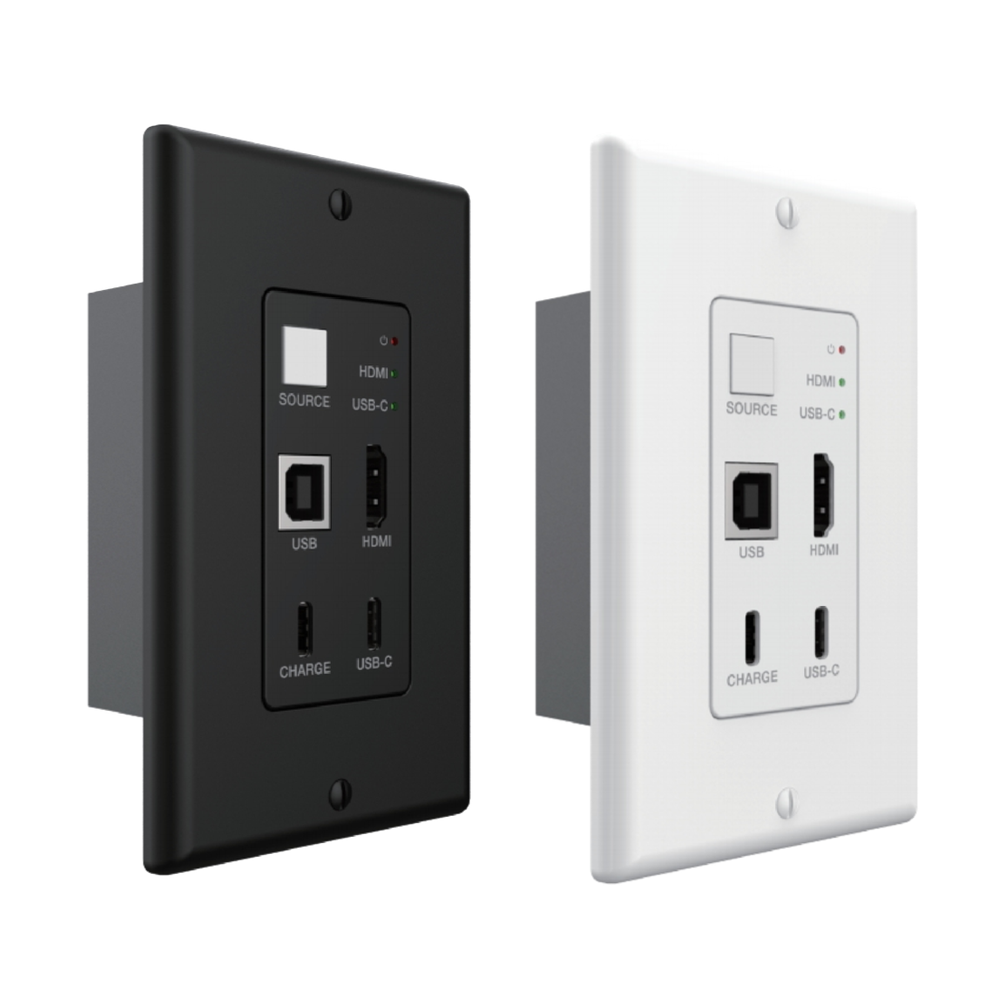

The wall plate is a 2×1 switcher and HDBaseT transmitter with HDMI and USB-C
input. It features a US one-gang enclosure for Decora-style wall plate openings with
interchangeable black and white wall plates and faceplates. The USB-C input provides an
ideal AV interface for connecting with new Apple notebooks and Windows® PCs as well as
smartphones and tablets. Support video resolution up to 4K@60Hz 4:4:4. The product is
remotely powered by the receiver or other HDBaseT-equipped devices via POE.
☆ Compliant with HDMI 2.0b, HDCP 2.2 and DisplayPort 1.2a
☆ Support 18Gbps video bandwidth
☆ Video resolution up to 4K@60Hz 4:4:4
☆ HDBaseT output can extend video transmission distance up to 230ft / 70m
for 1080P or 131ft / 40m for 4K via a single CAT6/6a/7 cable
☆ Support HDR10 and HDR10+
☆ Audio formats support Dolby Atmos, TrueHD, Digital+, Digital; DTS X, HD
Master Audio, HD High Resolution Audio, 5.1; PCM 2-8Ch
☆ Support HDMI and USB-C input
☆ US one-gang enclosure for Decora-style wall plate openings
☆ Input signal selection supports automatic mode and manual mode
☆ USB2.0 extension with Receiver
☆ Support POE function (only from Receiver to Transmitter)
☆ With USB-C charging port
☆ Available in white or black coating
• 1× 18Gbps HDBaseT 70M with USB-C/HDMI & KVM Function Wall Plate Transmitter
• 1× User Manual
