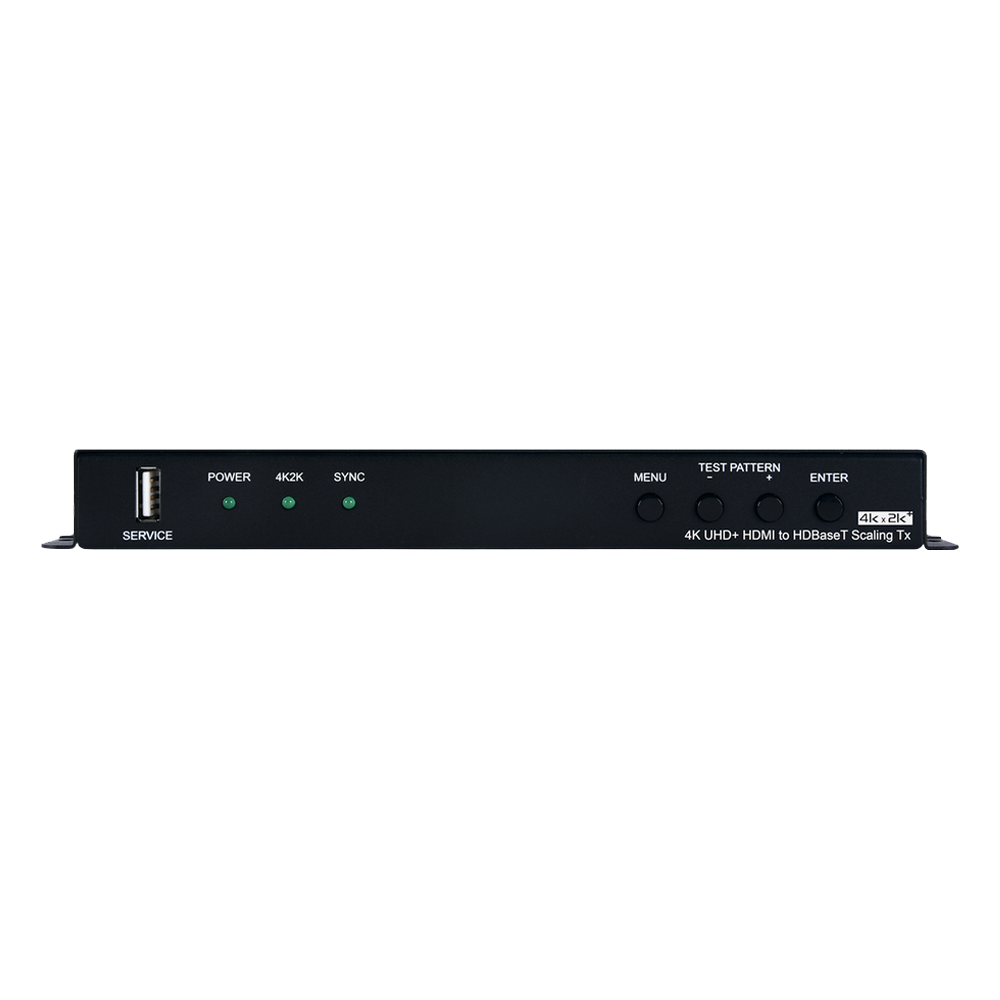

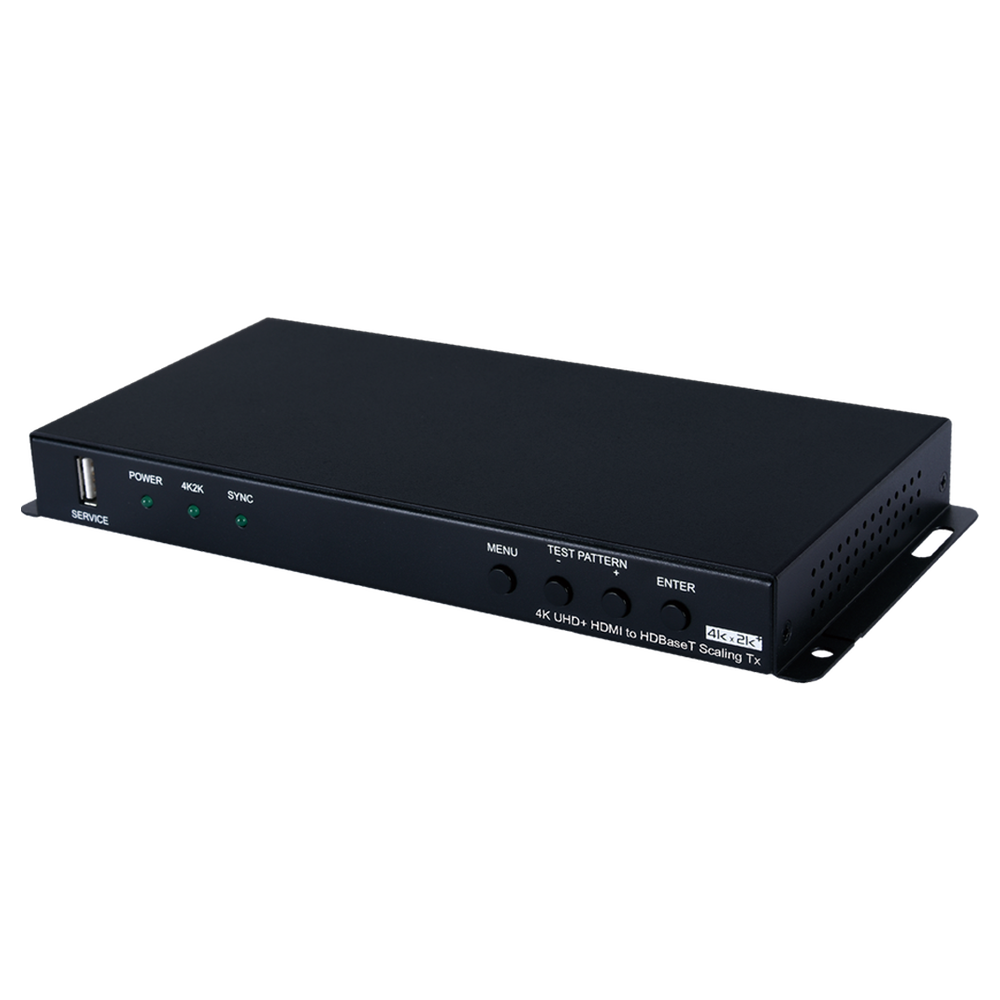

This HDBaseT to Dual HDMI Scaling Receiver can receive uncompressed
audio/video along with control, Ethernet, and extra audio data over a single
run of Cat.5e/6/7 cable up to 100m. While the HDBaseT input is limited to
a maximum of 4K@60Hz (4:2:0, 8-bit), this unit can automatically convert
or scale the input to output at 4K@60Hz (4:4:4, 8-bit) depending on the
detected capability of
the connected display. Simple 18Gbps HDMI test patterns are also available
to be output for easy testing of local equipment. Control
of remote devices is possible via bi-directional RS-232 or IR as well as via a
LAN connection. Digital OAR (Optical Audio Return) support
at 48kHz and a balanced analog audio output provides users with additional
audio flexibility. The 48V PoH design can receive power from the connected
Transmitter (PSE), eliminating the need for a local power supply, however
power via 5V power supply is also supported if needed.
- Supports the HDBaseT 1.0 specification
- HDBaseT 5PlayTM convergence: High-Definition (HD) Video and Audio, 100BaseT Ethernet, 48V PoH, and Control (Bi-directional IR/ RS-232 pass-through)
- Supports UHD resolutions up to 3840×2160@50/60Hz (YUV 4:4:4) & 4096×2160@50/60Hz (YUV 4:4:4)
- Supports pass-through of all standard digital audio: LPCM 2.0/5.1/7.1, Bitstream & HD Bitstream
- Supports RS-232 baud rates from 110~115200bps • 10/100 Ethernet network support
- Fully compliant with HDMI 1.4, and compatible with HDMI 2.0 (4K@60Hz, YUV 4:2:0)
- HDMI with 18Gbps (600MHz) 4K support and HDCP 2.2 compliant
- Supports Deep Color up to 1080p/12-bit • Supports DVI to HDMI conversion
- Supports signal bypass on HDMI output (on the Transmitter)
- Transmitter can upscale 1080p signals to 4K over HDBaseT output or downscale 4K signal to 1080p (same framerate is maintained)
- Receiver supports signal bypass on both outputs or output B can upscale 1080p signals to 4K and output A can downscale a 4K signal to 1080p (same framerate is maintained)
- Supports 4K UHD (4:4:4) to 4K UHD (4:2:0) conversion
- Supports OAR (Optical Audio Return) and DAC audio balance conversion
- Test pattern generation at select resolutions for on-site display testing
- Integrated EDID management
- OSD with instant I/O resolution display

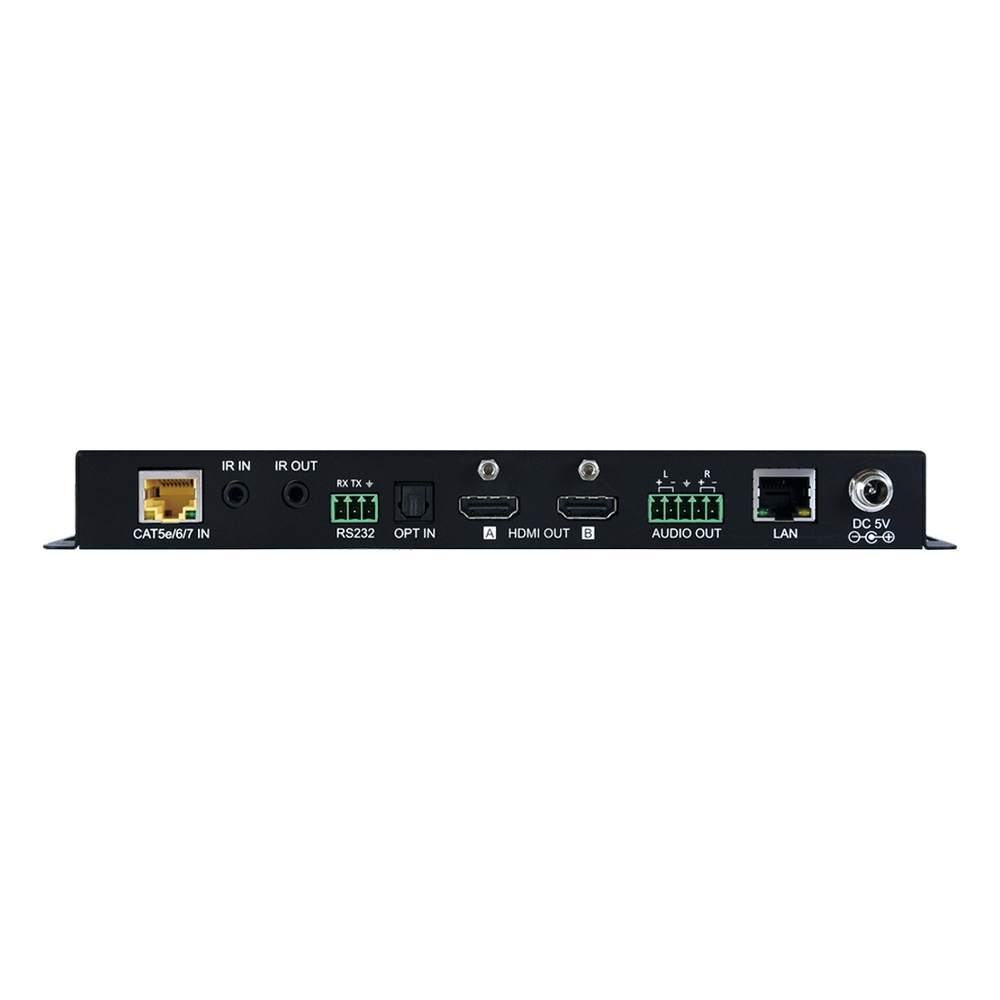

Inputs
- 1x RJ-45 [1x HDMI & Propriety Data]
- 1x TOSLINK [1x OPTICAL 2 Channel LPCM]
- 1x 3.5mm [1x Infrared Receiver]
- 3x 1-Pin Terminal Block [1x RS-232]
Outputs
- 2x HDMI [2x Uncompressed AV and Data]
- 1x Terminal Block 5-pin [1x Stereo (Balanced)]
- 1x 3.5mm [1x Infrared Emitter]
PSU: 5V/2.6A
Dimensions: 231mm [W] x 117mm [D] x 25mm [H]
Net Weight: 670g
• 1×HDMI over HDBaseT Scaling Transmitter • 1×IR Blaster Cable
• 1×IR Extender Cable
• 1×Terminal Block (3-pin)
• 1×Terminal Block (5-pin)
• 1×Power Cord
• 1×24V/2.7A DC Power Adaptor
• 1×Operation Manual
