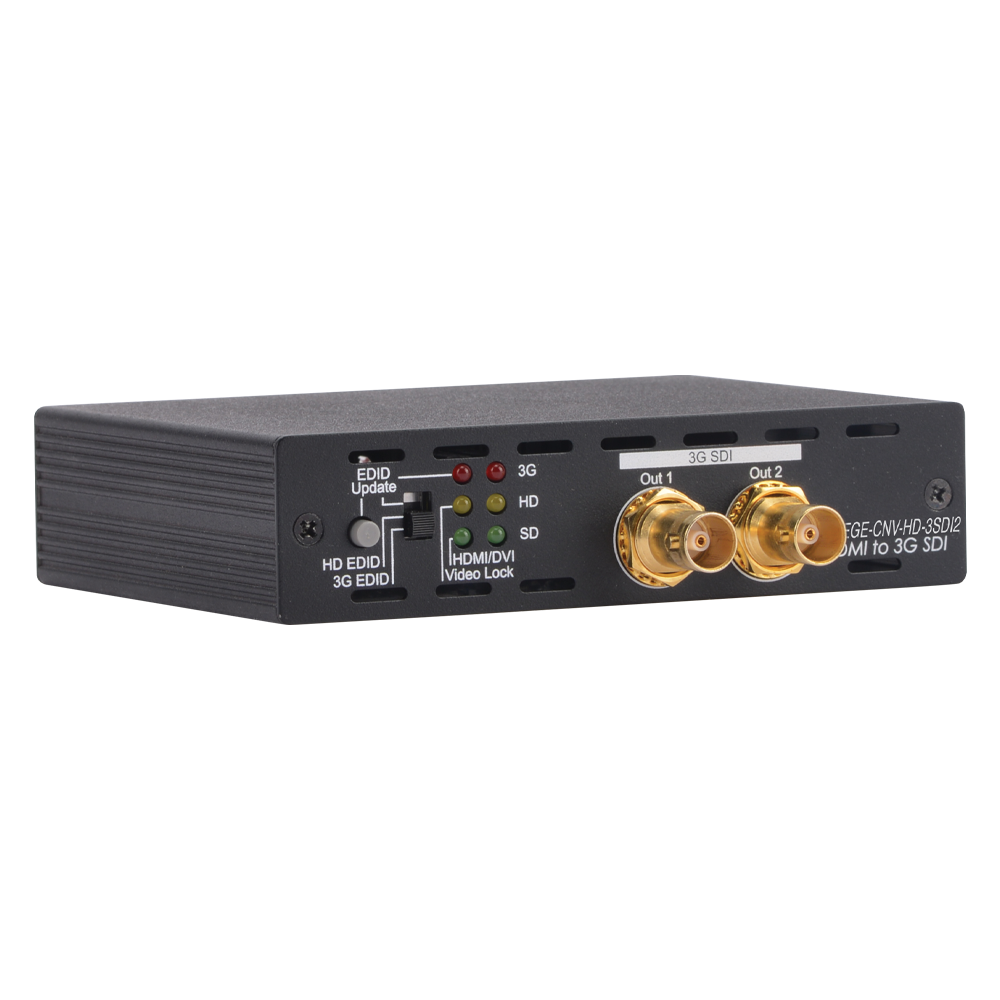

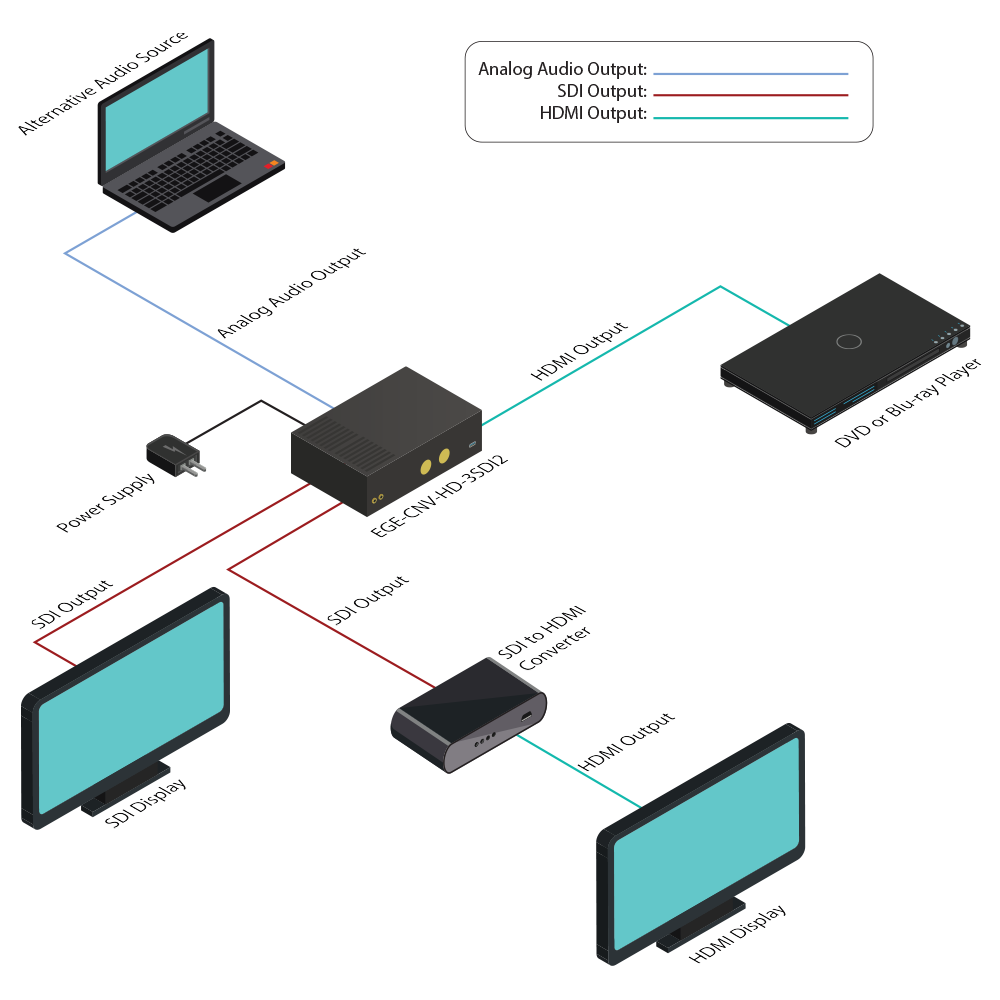

The HDMI to SDI Converter allows HDMI signals to be shown on two
SDI displays while ensuring high bit rates of 2.970 Gbit/s to give you high
resolution signal without any loss. For professionals this means that it is
now easier to convert your high def HDMI signal with audio to SDI for long
distance transmission and display your work on two SDI displays. Also, a
2 CH L/R audio input allows DVI signal with 2CH audio to be converted to
SDI in order to be shown on SDI displays. Furthermore, the device has a
built-in default EDID and a recordable EDID that guarantee image display
compatibility with source equipment.
- Shows HDMI source on two SDI displays simultaneously
- Supports SDI bitrates of 2.970Gbit/s & 2.970/1.001Gbit/s, 1.485Gbit/s & 1.485/1.001Gbit/s, and 270Mbit/s
- Converts HDMI format to SDI:
- 1080p to 3G-SDI (SMPTE 424M/425M-A@2.970Gbit/s & 2.970/1.001Gbit/s)
- 720p/1080i to HD-SDI (SMPTE 292M@1.485Gbit/s & 1.485/1.001Gbit/s)
- 480i/576i to SD-SDI (SMPTE 259M-C@270Mbit/s)
- Supports HDMI input timings of 480i@59.94Hz, 576i, 720p@50/59.94/60Hz, 1080i@50/59.94/60Hz, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz
- Choose between a selectable EDID and recordable EDID
- Integrated audio embedded up to 8 CH PCM 48 kHz for HDMI or 2CH (external L/R) for DVI audio
- Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)

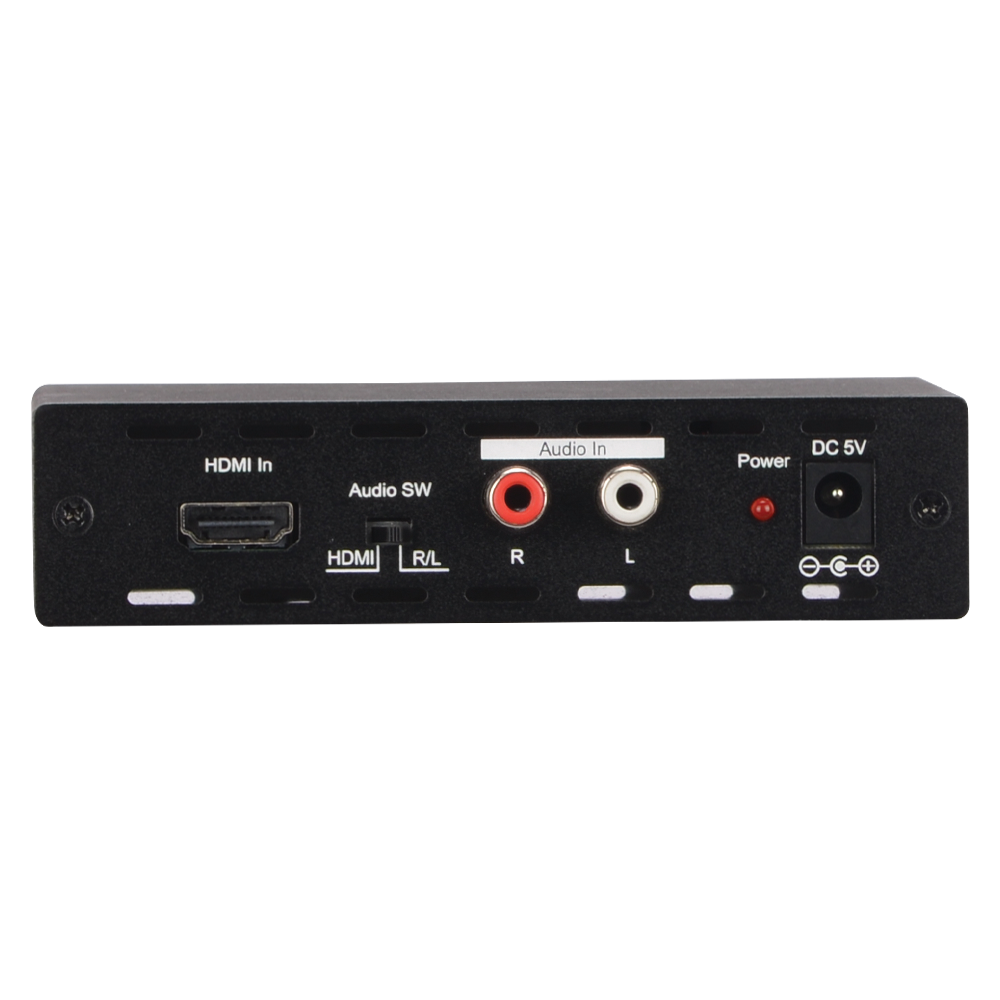

Inputs
- 1x HDMI [1x Uncompressed AV and Data]
- 2x RCA [1x Stereo (L/R)]
Outputs

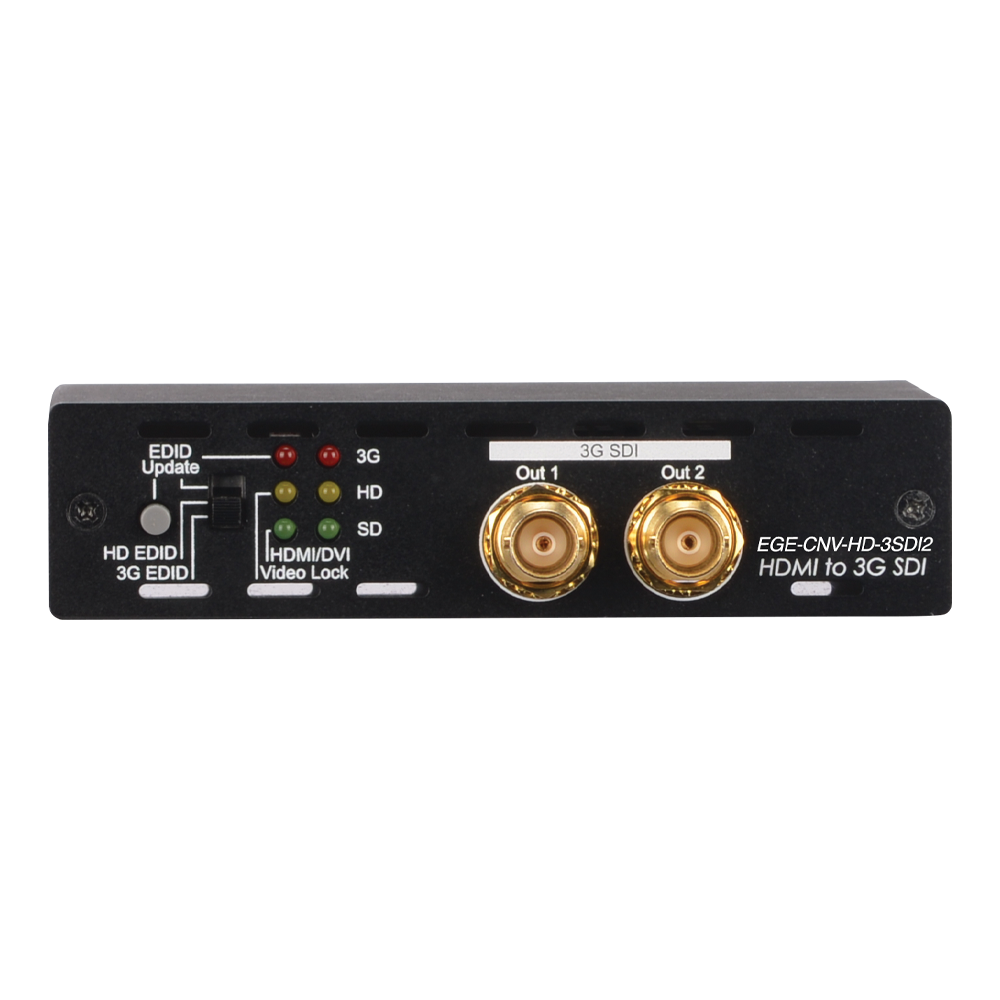

- 2x BNC [2x 3G-SDI / HD-SDI / SD-SDI]
PSU:
Dimensions
- 125mm [W] x 115mm [D] x 30mm [H]
Net Weight
• HDMI to 3G SDI Dual-Output converter
• 5V/2.6A Power Adaptor
• Operation Manual
