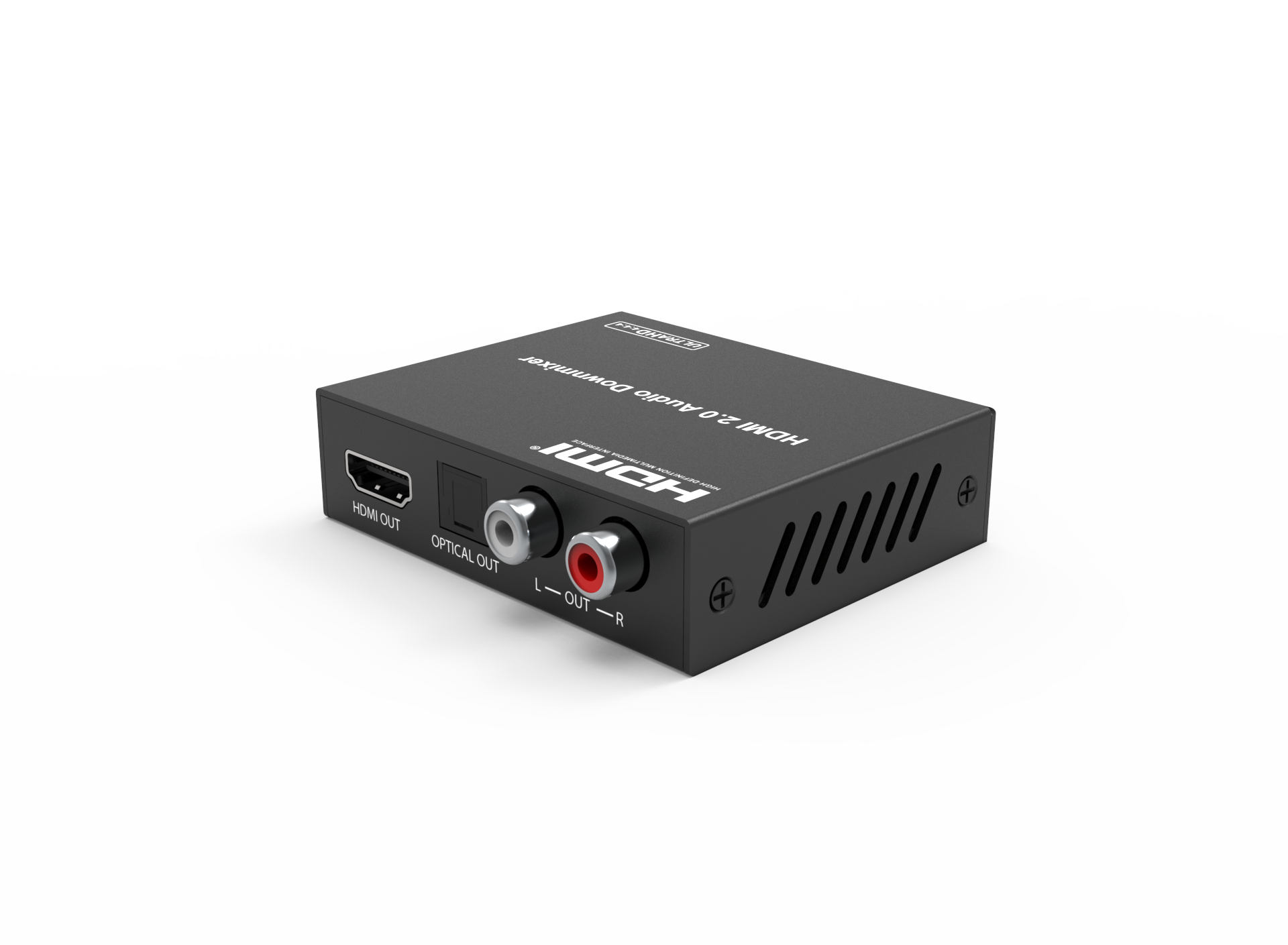

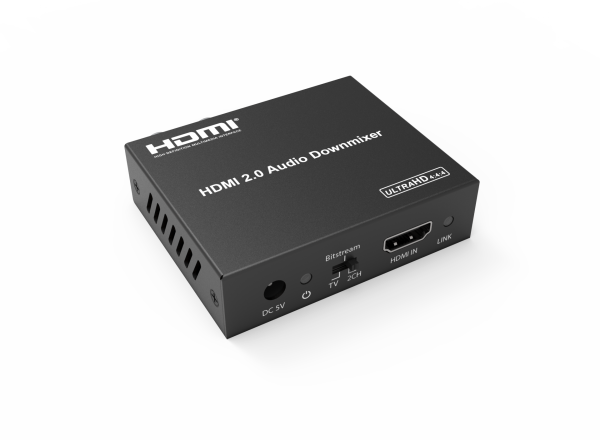

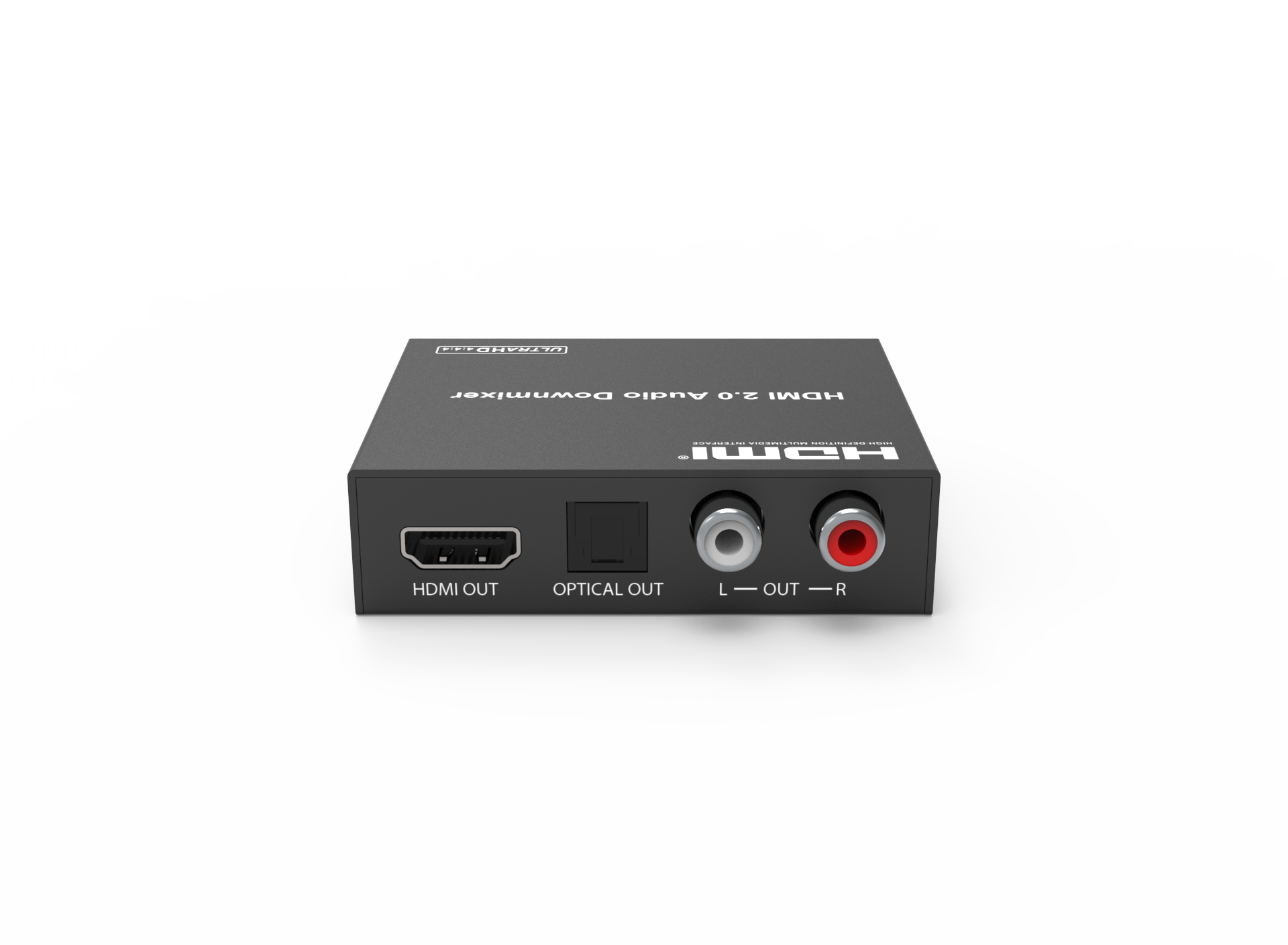

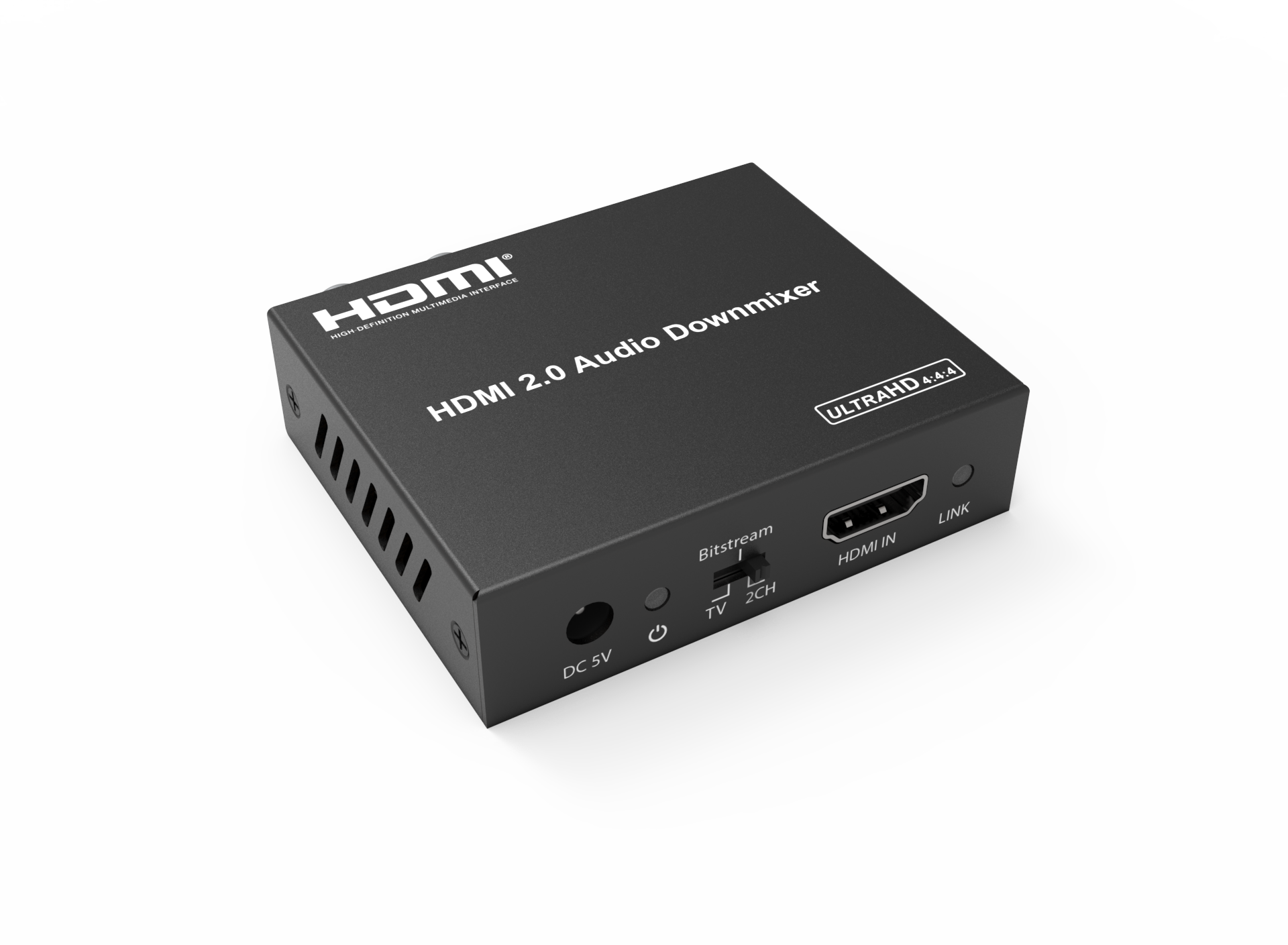

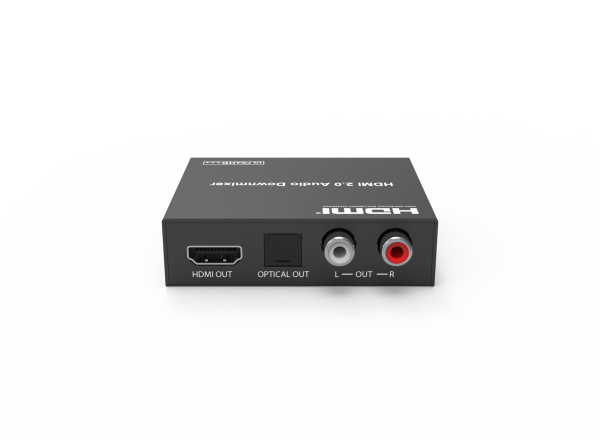

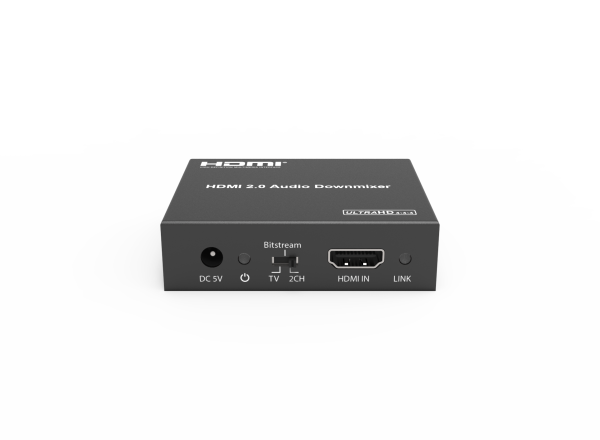

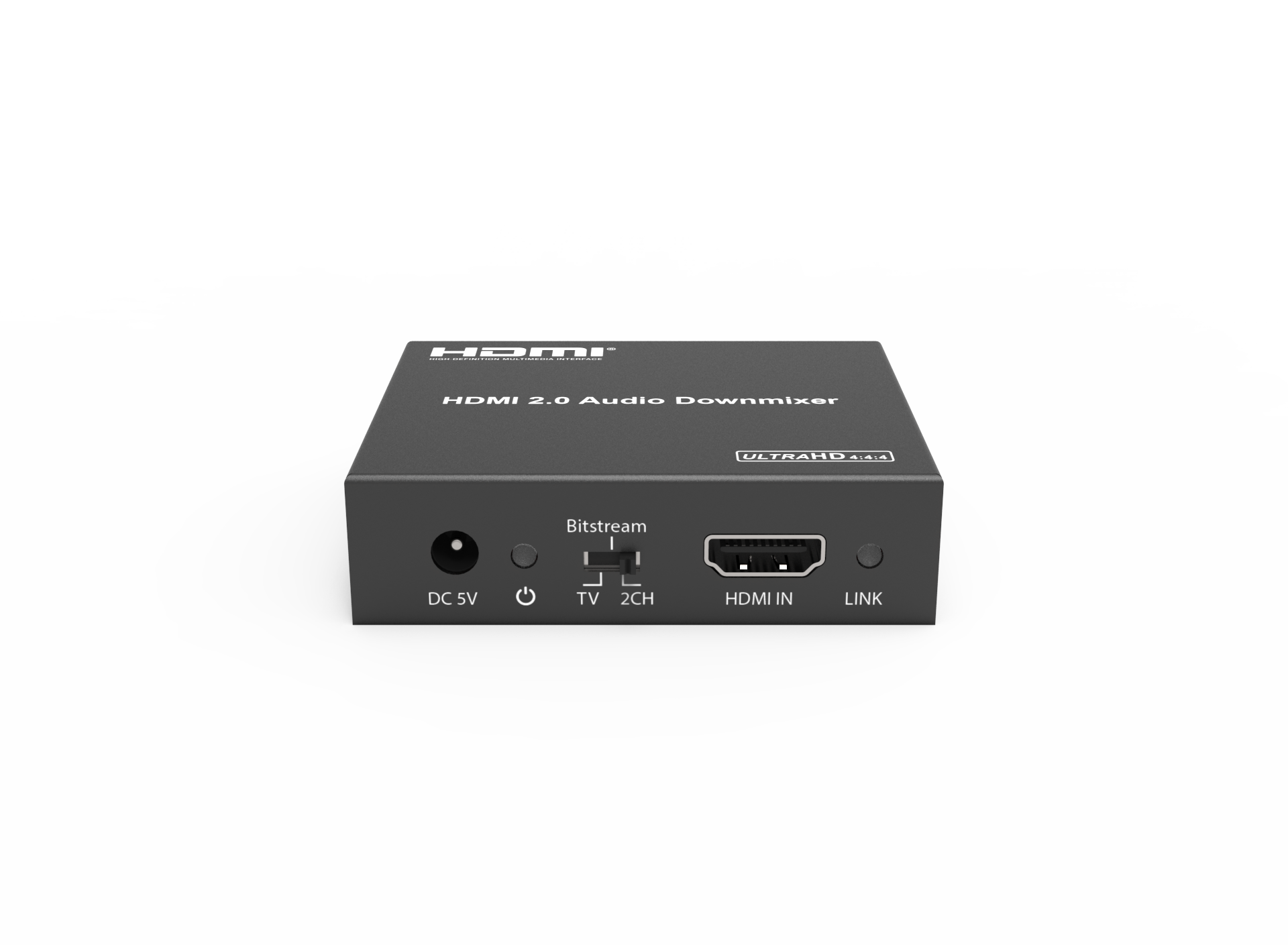

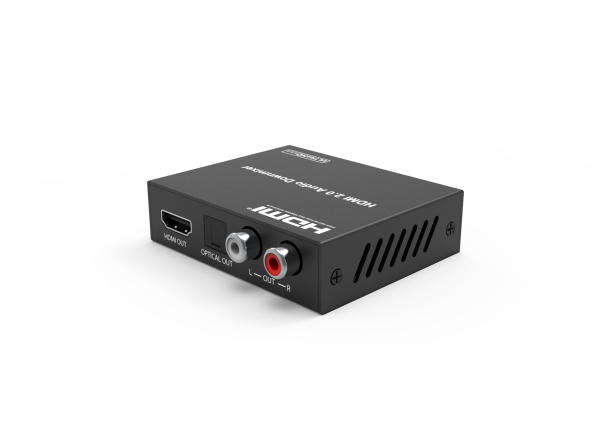

The HDMI 18Gbps Audio Extractor could extract
audio signals from any HDMI compliant source to
digital optical or analog stereo L/R audio outputs.
For maximum flexibility, this audio extractor also
supports bitstream audio down-mix to analog stereo
output and keeps optical and HDMI out audio passthrough. Further, both input and output HDMI support
video resolution up to 4K2K@50/60Hz (YUV444). It
supports 10bits HDR (High Dynamic Range) pass
through and HDMI high resolution digital audio formats
bypass, LPCM 2CH, Dolby TrueHD, Dolby Digital
Plus, Dolby Atmos and DTS-HD Master Audio, audio
sampling rate up to 192 kHz. HDCP 2.2 and CEC
bypass are supported.
☆ HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant <br/>
☆ Video resolutions up to 4K2K@50/60Hz (YUV444)<br/>
☆ Extract HDMI audio to multi-channel optical
(SPDIF) or L/R analog audio<br/>
☆ HDMI Pass-through audio input to HDMI and
optical audio output<br/>
☆ Support bitstream audio down-mix to L/R analog
output<br/>
☆ Optical audio supports LPCM 2CH, Dobly Digital
2/5.1CH, DTS 2/5.1CH<br/>
☆ Support HDMI High Bit Rate(HBR) audio pass
through<br/>
☆ Audio sample rates up to 96kHz<br/>
☆ 10bits HDR (High Dynamic Range) pass through<br/>
☆ Support CEC pass-through<br/>
1× HDMI 18Gbps Audio Extractor
1× 5V/1A Power Adapter
1× User Manual
