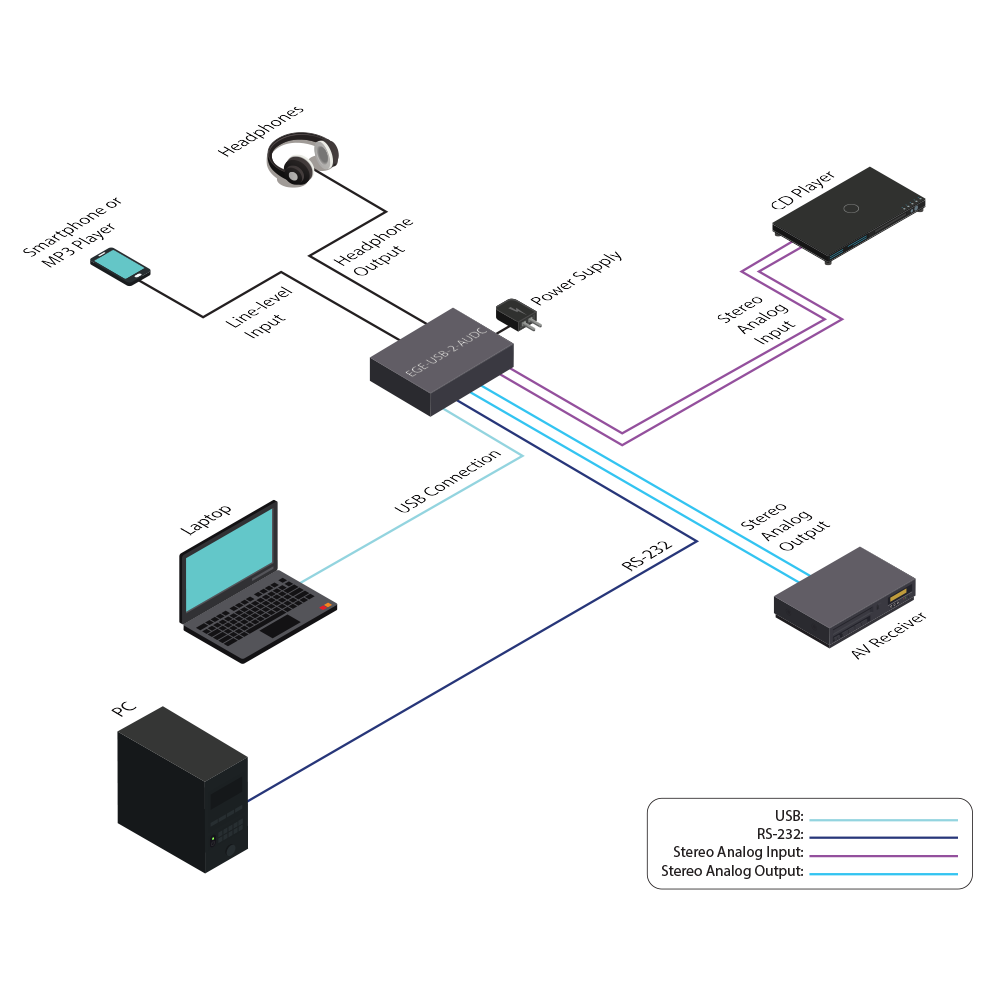

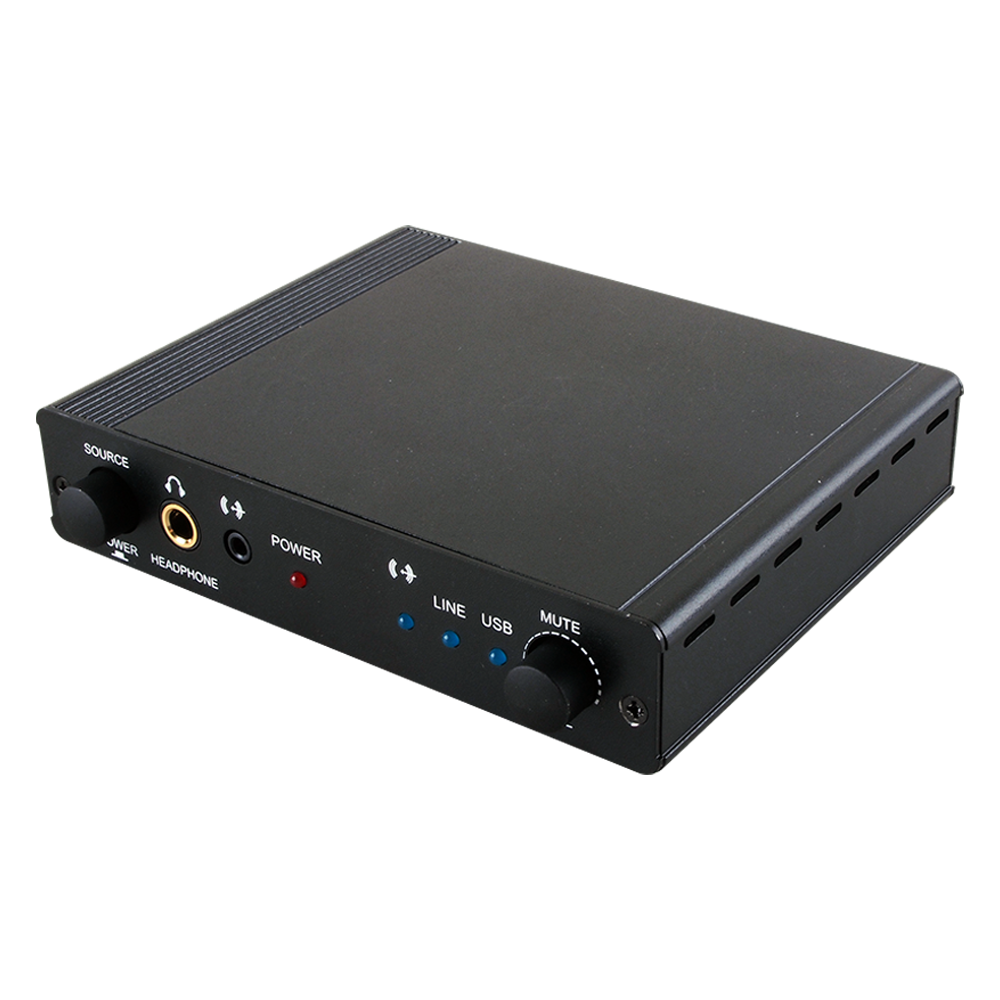

The USB Audio Center allows multiple audio sources to be controlled, switched and
outputted to a variety of audio equipment. With 3 audio inputs (USB, Line-level RCA
and 3.5mm mini-jack and 2 audio outputs (Line-level RCA and 6.3mm headphone
output) you can integrate and convert USB or analog stereo audio sources to Line
level output and 6.3mm headphone simultaneously.
- Supports Digital to Analog audio Conversion (DAC)
- Supports USB sampling rate up to 192 kHz
- Simultaneous output on both Line out and 6.3mm headphone output
- Supports RS-232 control
- Volume control of analog and headphone outputs

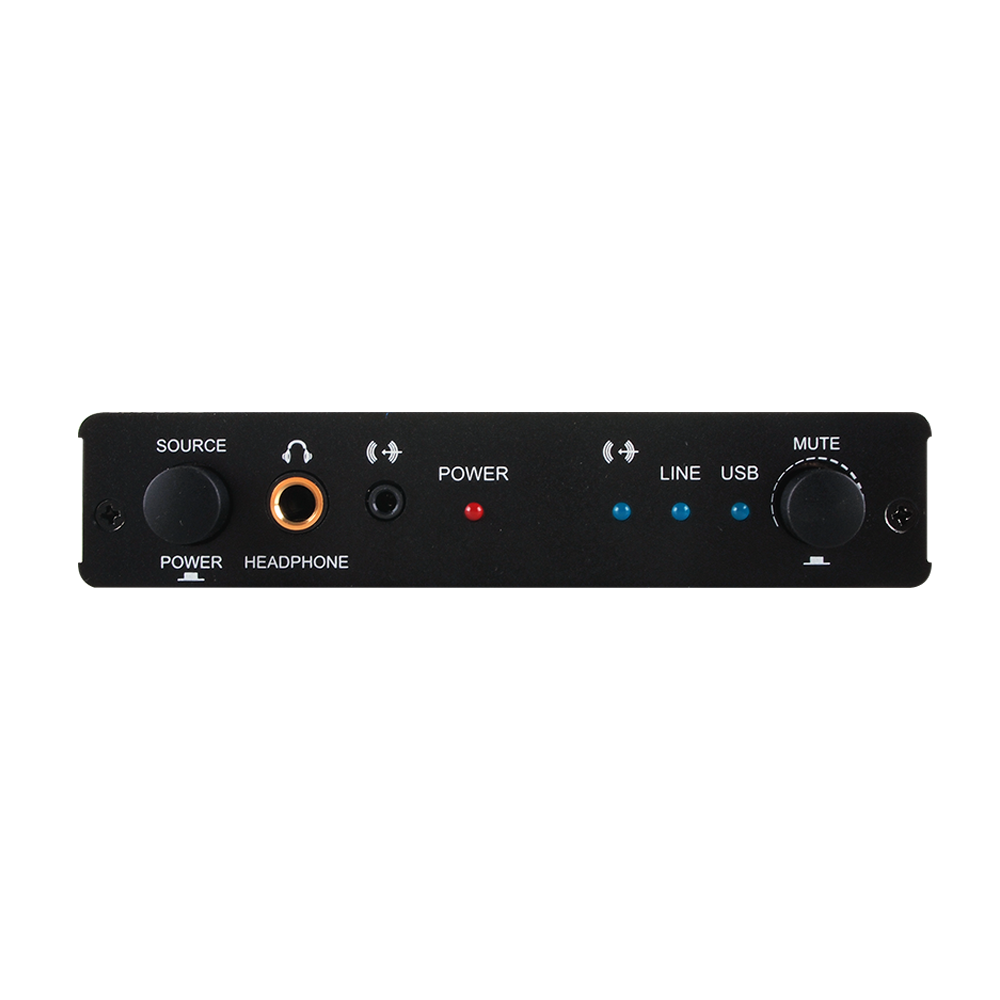

- Direct power ON/OFF and mute button on unit
- Headphone output fades in after system is muted
- 6.3 mm headphone output (3.5 mm mini-jack adaptor supplied)
- Compact design and easy to use

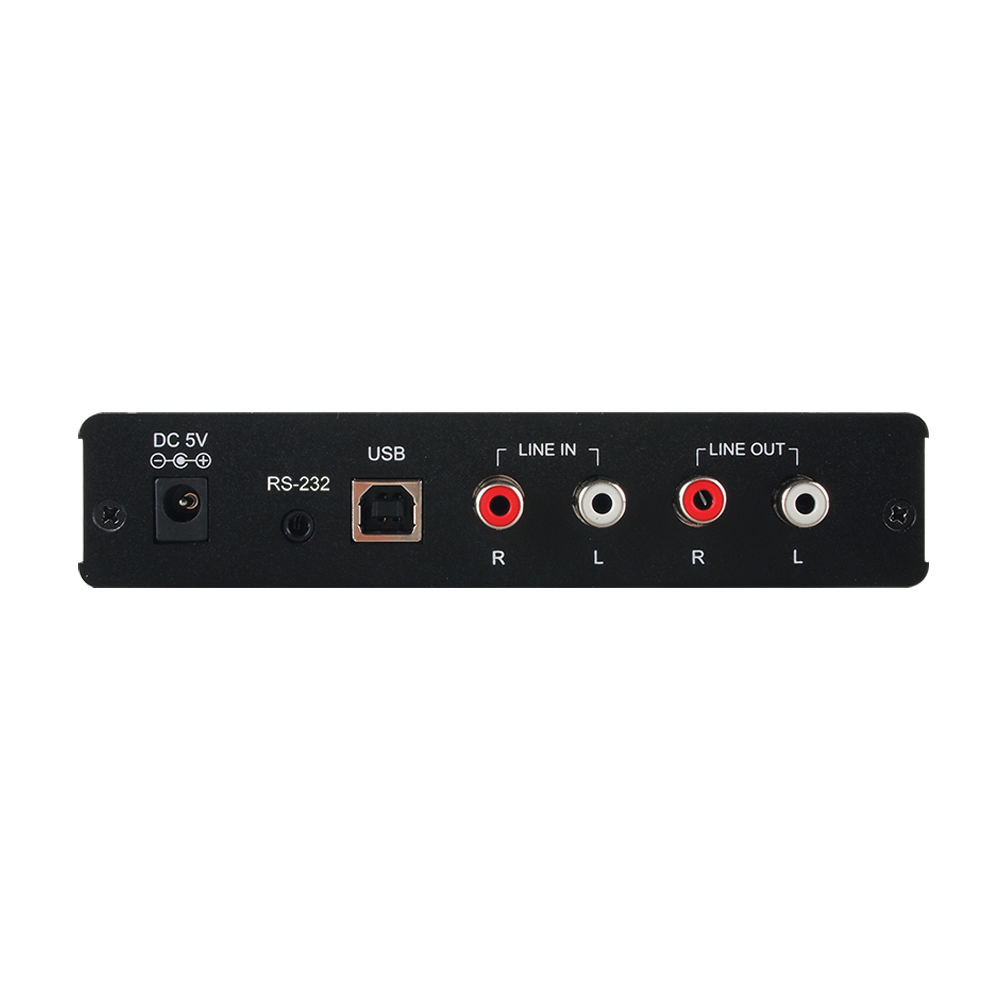

Inputs
- 2x RCA [1x LINE IN Stereo (L/R)]
- 1x 3.5mm Stereo Mini-jack [1x Stereo(L/R)]
- 1x USB Type B [1x AUDIO / SERVICE USB (2.0) Audio / Propriety Data]
- 1x 3.5mm Stereo Mini-jack [1x RS-232]
Outputs
- 2x RCA [1x LINE OUT Stereo (L/R)]
- 1x 6.35mm Stereo Jack [1x Headphone]
PSU:
Dimensions
- 145mm [W] x 113mm [D] x 30mm [H]
Net Weight
• 1×USB Audio Center
• 1×5 V/3 A DC Power Adaptor
• 1×6.3mm to 3.5mm Jack
• 1×3.5mm to D-sub 9-pin Cable
• 1×Driver CD-Rom
• Operational Manual
