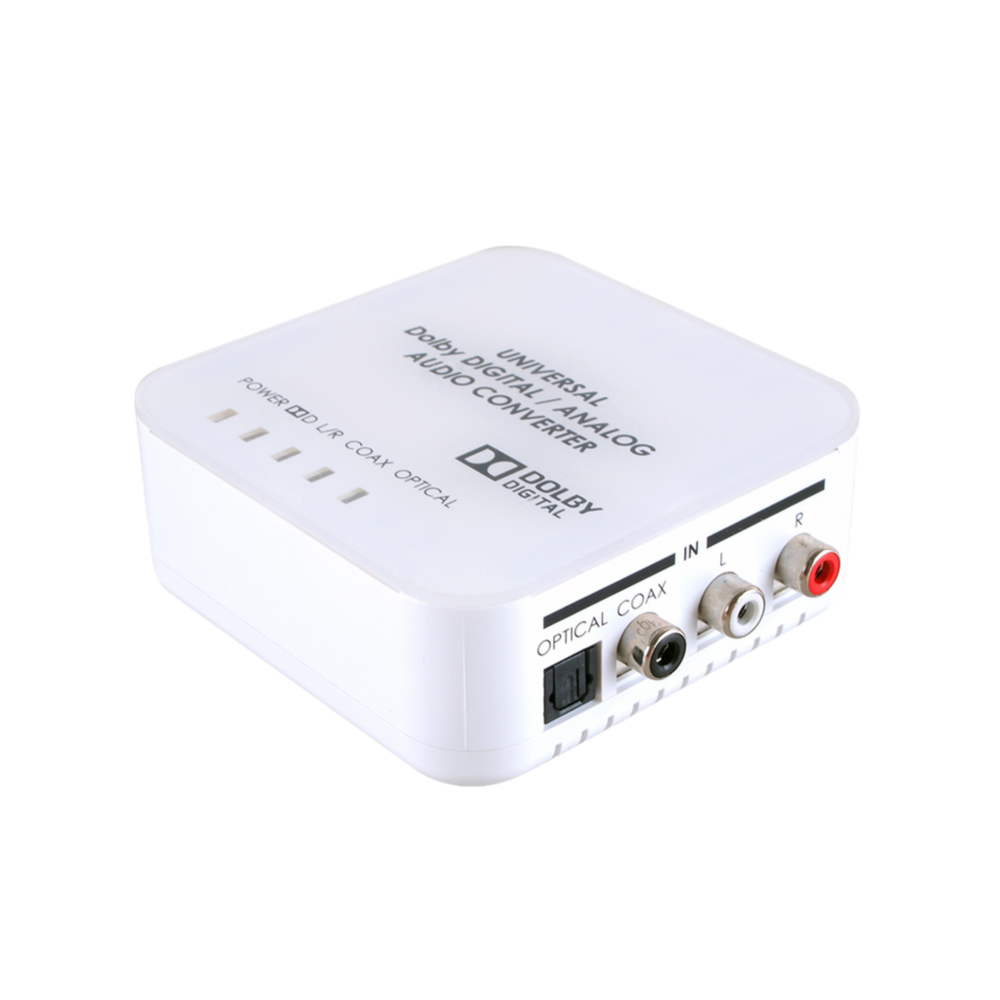

EGE-CT-9 Bi-directional Digital/Analog Audio …

Bi-directional
Digital/Analog Audio Converter
In&Out: Coax. , Optical, L/R Audio

Categories: Audio Converter, Audio Product, PRO-AV-Products Tags: Geratech audio products, Geratech Bi-directional Digital/Analog Audio Converter, Geratech EGE-CT-9, Geratech EGE-CT-9 Bi-directional Digital/Analog Audio Converter

Supports digital audio input (coaxial/optical) and analog audio output (L/R)
Supports uncompressed 2-Channel LPCM digital audio input
Integrated Digital to Analog Converter and digital interpolator filter
Integrated Analog to Digital Converter
Supports S/PDIF 24 bit data for the left and right channels up to 96kHz
Easy installation/operation and compact size
Supports sampling rates 32, 44.1, 48 and 96kHz
Electromagnetic Noise Free transmission

Inputs

1x TOSLINK [1x Optical 2 Channel LPCM]
1x RCA [1x Coax 2 Channel LPCM]
2x RCA [1x Stereo (L/R)]

Outputs

1x TOSLINK [1x Optical 2 Channel LPCM]
1x RCA [1x Coax 2 Channel LPCM]
2x RCA [1x Stereo (L/R)]

PSU:

5V/1A

Dimensions

97mm [W] x 85mm [D] x 35mm [H]

Net Weight

120gr

Supports digital audio input (coaxial/optical) and analog audio output (L/R)
Supports uncompressed 2-Channel LPCM digital audio input
Integrated Digital to Analog Converter and digital interpolator filter
Integrated Analog to Digital Converter
Supports S/PDIF 24 bit data for the left and right channels up to 96kHz
Easy installation/operation and compact size
Supports sampling rates 32, 44.1, 48 and 96kHz
Electromagnetic Noise Free transmission

Inputs

1x TOSLINK [1x Optical 2 Channel LPCM]
1x RCA [1x Coax 2 Channel LPCM]
2x RCA [1x Stereo (L/R)]

Outputs

1x TOSLINK [1x Optical 2 Channel LPCM]
1x RCA [1x Coax 2 Channel LPCM]
2x RCA [1x Stereo (L/R)]

PSU:

5V/1A

Dimensions

97mm [W] x 85mm [D] x 35mm [H]

Net Weight

120gr

Please sign in for access to files.
